TE0712|Xilinx Artix-7 XC7A(35T/100T)

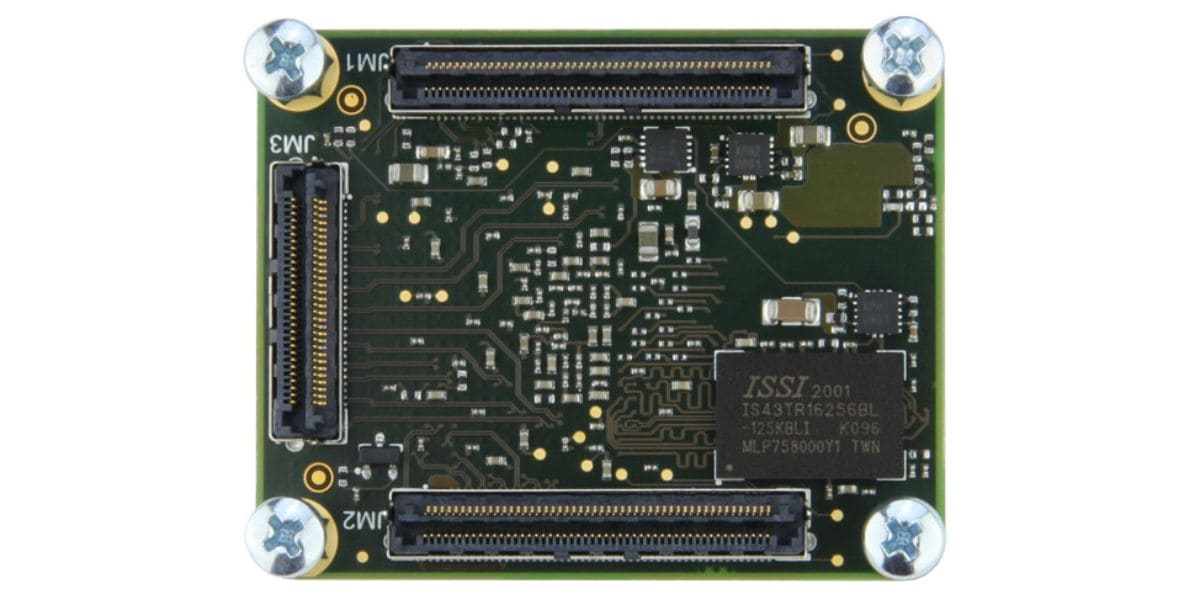

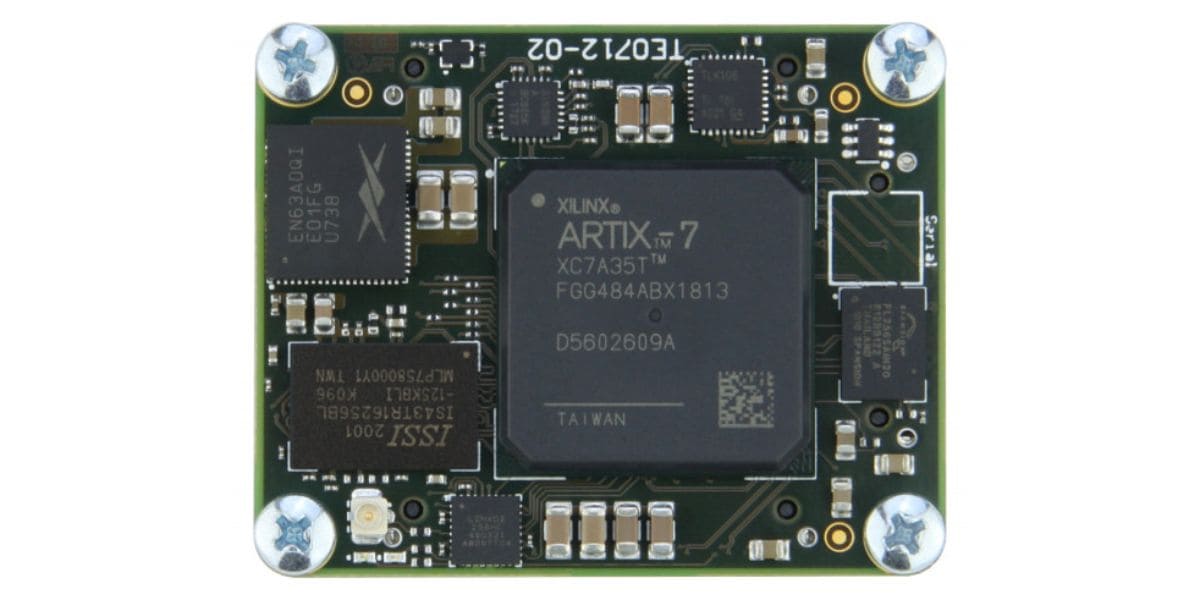

TE0712-FPGA Module with Xilinx Artix-7 XC7A35T-2FGG484I, 1 GByte DDR3, 4 x 5 cm

The Trenz Electronic TE0712-02-42I36-A is an industrial-grade FPGA module integrating a Xilinx Artix-7 35T FPGA, 1 GByte of DDR3 SDRAM, 32 MByte Flash memory for configuration and operation, a 10/100 Mbit Ethernet transceiver, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O's is provided via rugged high-speed stacking strips.

All this on a tiny footprint, smaller than a credit card, at the most competitive price. Modules in 4 x 5 cm form factor are fully mechanically and largely electrically compatible among each other.

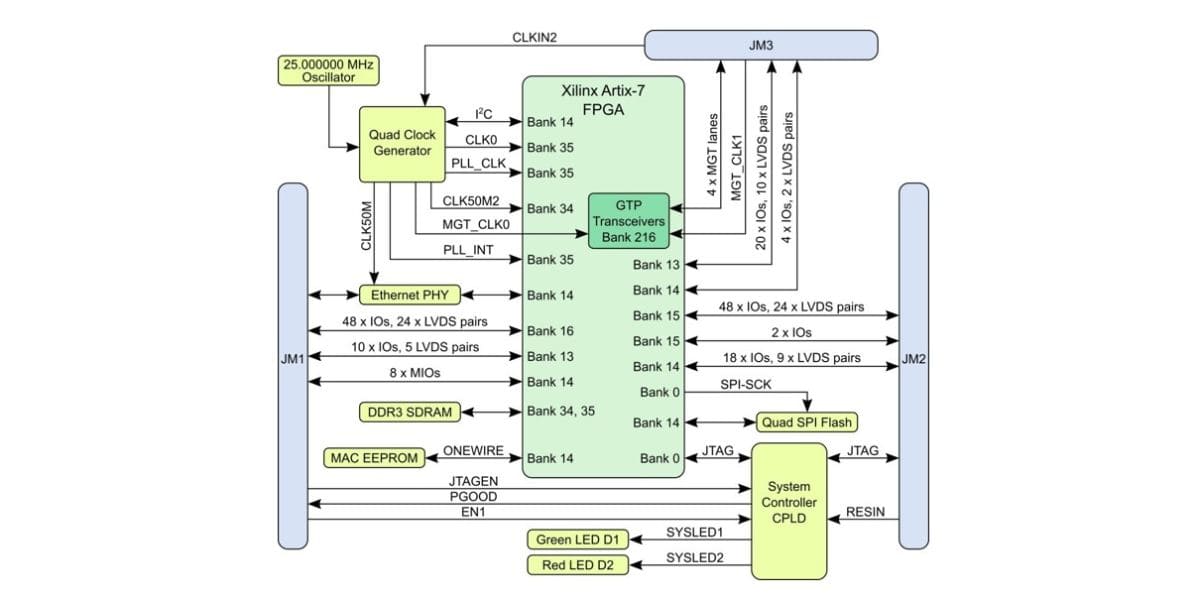

TE0712 壓

Key Features

  • Xilinx Artix-7 XC7A35T-2FGG484I
  • Rugged for high shock resistance and high vibration
  • 32 MByte (256 Mbit) Quad-SPI Flash memory
  • 4 GTP (high-performance transceiver) lanes
    • GTP (high-performance transceiver) clock input
  • 1 GByte (32-bit) DDR3 SDRAM
  • 10/100 Mbit Ethernet PHY in RMII Mode
    • MAC address EEPROM
  • Programmable Low Jitter PLL (Silicon Labs Si5338)
  • On-board high-efficiency DC-DC converters
    • 12 A x 1.0V power rail
    • 1.5 A x 1.8V power rail
    • 1.5 A x 1.5V power rail
  • Supply voltages: either 3.3V or 3.3V and 5V
  • Plug-on module with 2 x 100-pin and 1 x 60-pin Razor Beam High-Speed hermaphroditic Terminal/Socket Strips (regular 4 mm)
  • 128 FPGA I/O's (63 differential pairs) available on board-to-board connectors
  • System management and power sequencing
  • eFUSE bit-stream encryption
  • AES bit-stream encryption
  • Two User configurable LEDs
  • Evenly spread supply pins for good signal integrity

Scope of Delivery

  • 1 x TE0712-02-42I36-A Trenz Electronic 4 x 5 cm FPGA module with Xilinx Artix-7 35T
  • 8 x screws
  • 4 x bolts
20171115 04

  產品編號:

TE0712-02-42I36-A:Xilinx Artix-7 XC7A35T-2FGG484I

TE0712-03-71I36-A:Xilinx Artix-7 XC7A100T-1FGG484I

TE0712-03-72C36-A:Xilinx Artix-7 XC7A100T-2FGG484C
