FPGA全可程式化平台

FPGA Development Boards & Kits

現場可程式化邏輯閘陣列（FPGA）的可編程邏輯技術是現代電路設計人員使用的重要工具。DIGILENT 與 Xilinx 緊密合作，透過 Xilinx University Program 的合作，提供多種開發板與研究平台，極大的靈活性使 FPGA 的擴充功能適合各種應用，是快速發展的技術領域中的理想選擇。

型錄下載

自適應智慧運算的
最佳入門硬體

DIGILENT 全系列 FPGA 開發板皆採用 Xilinx FPGA，業界首屈一指的前端科技，擁有高度智慧且可滿足多種應用程序需求的晶片技術，提供您教學研究的最佳支援

透過 DIGILENT
學習 FPGA 的設計驗證

DIGILENT 為 Xilinx University Program 的硬體合作伙伴。透過 DIGILENT的開發板搭配 Vivado (WebPAC版本)，立即體驗 FPGA 設計驗證的學習樂趣與成就感!

更廣泛的應用
深化您的研究領域

豐富的硬體介面與友善的應用資源，在加速運算、數位訊號處理、機器學習、動態功能、射頻採樣及系統監視等智慧科技應用下，成為您於研究教學之最佳助力

暸解 Xilinx University Program 的全貌>>免費的 Vivado Design Suite Evaluation and WebPACK >>

DIGILENT FPGA 硬體方案

USRP B205mini-i 規格

USRP B205mini-i：1x1 USB軟體定義無線電平台 │ 工業級 Spartan-6 FPGA

Features
RF Specifications	Channels: 1 TX, 1 RX Frequency range: 70 MHz to 6 GHz Instantaneous Bandwidth: Up to 56 MHz IIP3 (at typical NF): -20 dBm Power Output: >10 dBm Receive Noise Figure: <8 dB
Conversion Performance and Clocks	ADC Sample Rate (Max.): 61.44 MS/s ADC Resolution: 12 bits DAC Sample Rate (Max.): 61.44 MS/s DAC Resolution: 12 bits Host Sample Rate (16b): 61.44 MS/s Frequency Accuracy: +/-2.0 ppm
Power	USB Power: 5V
Physical	Dimensions: 83.3 x 50.8 x 8.4 mm Weight: 24.0 g
Environment	Operating Temp. Range: 0 - 45 °C USRP Hardware Driver 3.9.2 (or later) GNU Radio
Synchronization	10 MHz clock reference PPS time reference

詳細資訊線上購買

Genesys 系列規格

Genesys 2 │ Kintex-7 FPGA 大數據互聯與視訊系統開發板

Genesys 2 200.139 PNG

產品詳述線上購買

Genesys ZU │ Xilinx Zynq Ultrascale+ MPSoC 開發板 / 5G無線基礎架構雲計算 AI 航太應用先進車輛駕駛輔助監控嵌入式視覺應用 (2020全新上市)

Features
Zynq Ultrascale+ (XCZU3EG-SFVC784-1-E)	256 Mbit QSPI Flash memory on-board USB FTDI interface for programming and debugging MicroSD card interface, supporting SDR104 mode Board status and diagnostics using and on-board platform MCU 154K logic cells 7.6 Mb Block RAM 360 DSP Slices 3 clock management tiles DDR4, 4GB, 1866 MT/s (2133 MT/sB), upgrade-able memory
Application Processor	Quad-core ARM Cortex-A53 MPCore up to 1.5 GHz
Real-time Processor	Dual-core ARM Cortex-R5 MPCore up to 600 MHZ
Graphics Processor	Mali^TM-400 MP2
Peripheral Connectivity	USB Type-C 3.1 Gen1 Dual-Role Device MiniPCIe / mSATA: dual slot, Half-/Full-size USB 2.0 Host: 2x Type-A
Network Connectivity	2.4GHz On-board Wi-Fi Ethernet 1G w/ IEEE 1588 WLAN / WWAN / LoRa (option: MiniPCIe)
Storage	104 MB/s SD SSD option: mSATA ISSI 256 Mib SNOR Flash
Multimedia	1.2a Dual-Lane DisplayPort 2 x Pcam Dual-Lane Audio Codec
Expansion	1 x Zmod port following the SYZYGY Standard interface specification 4 x Pmod ports 1 x FMC expansion connector
User I/O	4 PL-connected LEDs 1 MIO-connected LED 5 PL-connected buttons 2 MIO-connected buttons 4 PL-connected switches

Eclypse 系列規格

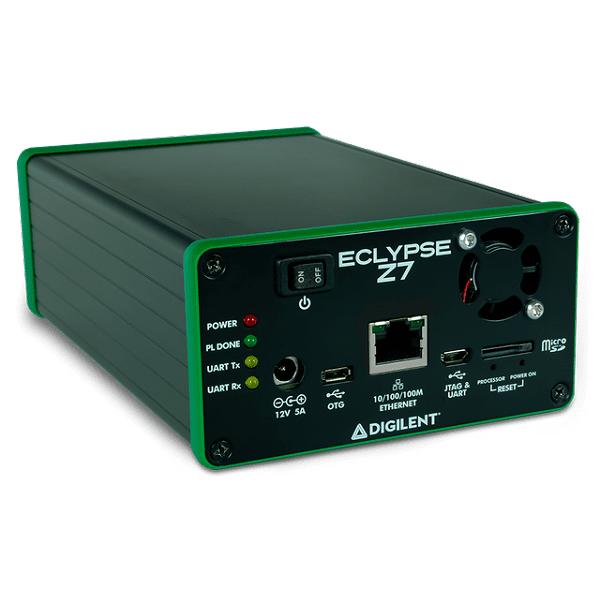

Eclypse Z7 │ 全新 SYZYGY x Zynq-7000 SoC 開發板

Features
Zynq-7000 APSoC (XC7Z020-1CLG484C)	667 MHz dual-core Cortex-A9 processor DDR3L memory controller with 8 DMA channels and 4 High Performance AXI3 Slave ports High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO Low-bandwidth peripheral controllers: SPI, UART, CAN, I2C Programmable from JTAG, Quad-SPI flash, and microSD card Programmable logic equivalent to Artix-7 FPGA
Memory	1 GiB DDR3L with 32-bit bus @ 1066 MT/s 16 MB Quad-SPI Flash with factory programmed 128-bit random number and 48-bit globally unique EUI-48/64™ compatible identifier microSD card slot
Power	Powered from external 12V 5A supply Platform MCU for configuration of adjustable power supplies and temperature management
USB and Ethernet	Gigabit Ethernet PHY USB-JTAG programming circuitry USB-UART bridge USB micro AB port with USB 2.0 PHY with Host/Device/OTG capabilities
Zmod Ports	2 ports following the SYZYGY Standard interface specification Compatible with a variety of SYZYGY pods, allowing for a wide variety of applications Dedicated differential clocks for input and output 8 differential I/Os per port 16 single-ended I/Os per port DNA interfaces connected to Platform MCU allowing for various auto-negotiated power supply configurations
Pmod Ports	2 twelve-pin ports for a total of 16 FPGA-connected I/Os High speed voltage translation and protection circuitry
User GPIO	2 push-buttons 2 RGB LEDs

產品詳述線上購買

Eclypse Z7 │ Enclosure Kit

Zybo 系列規格

Zybo-Z7 │ Zynq-7000 ARM/FPGA SoC 開發板

ZYBO Z7 200.152 PNG

	Zybo Z7-10	Zybo Z7-20
FPGA part	XC7Z010-1CLG400C	XC7Z020-1CLG400C
1 MSPS On-chip ADC	Yes	Yes
Look-up Tables (LUTs)	17,600	53,200
Flip-flops	35,200	106,400
Block RAM	270 KB	630 KB
Clock Management Tiles	2	4
Available Shield I/O	32	40
Total Pmod Ports	5	6
Fan Connector	No	Yes
Zynq Heat Sink	No	Yes
HDMI CEC Support	TX port only	TX and RX ports
RGB LEDs	1	2

詳細資訊線上購買

Zybo-Z7 │ Embedded Vision Bundle

Arty 系列規格

Arty A7 │ Artix-7 開發板

Arty A7 200.157 PNG

	Arty A7-35T	Arty A7-100T
FPGA part	XC7A35TICSG324-1L	XC7A100TCSG324-1
1 MSPS On-chip ADC	Yes	Yes
Logic Cells	32,280	101,440
Logic Slices	5,200	15,850
Flip-flops	29,200	126,800
Block RAM (Kbits)	1,800	4,860
Clock Management Tiles	5	6
DSP Slices	90	240

詳細資訊線上購買

Arty S7 │ Spartan-7 開發板

Arty Z7 │ Zynq-7000 開發板

Nexys 系列規格

Nexys A7 │ Artix-7 FPGA智慧開發板 (原 Nexys 4 DDR)

Nexys A7 200.144 PNG

Product Variant	Nexys A7-100T	Nexys A7-50T
Artix-7 Part	XC7A100T-1CSG324C	XC7A50T-1CSG324C
Logic Slices	15,850 (4 6-input LUTs & 8 flip flops each)	8,150 (4 6-input LUTs & 8 Flip flops each)
Block RAM	4,860 Kbits	2,700 Kbits
Clock Tiles	6 (each with PLL)	5 (each with PLL)
DSP Slices	240	120
Internal Clock	450 MHz+	450 MHz+
DDR2 Memory	128MiB	128MiB

詳細資訊線上購買

Nexys Video │ Artix-7 FPGA多媒體影音視訊智慧互聯系統評估板

USB104 系列規格

USB104 A7 │ PC/104 規格的 Artix-7 FPGA 開發板

Features and Specifications
Artix-7 100T (XC7A100T-1CSG324I) FPGA	Logic Cells: 101,440 DSP Slices: 240 Memory: 4,860 GTP 6.6Gb/s Transceivers: 8 I/O Pins: 300
Memory	512MB DDR3/DDR3L with 16-bit bus @ 800Mbps (1.5V) or 667Mbps (1.35V) 16MB Quad-SPI Flash for storing FPGA configuration
Power	Powered from a 5V external DC adapter attached to barrel jack or from USB header Automatic switching between USB and external power, with external receiving preference NCP380 load switch limits USB current to 2 amps and reduces in-rush current
USB	USB-JTAG Programming circuitry USB-UART bridge Adept DPTI/DSPI data transfer interface for high speed host to FPGA data transfer Onboard USB hub eliminates the need for multiple USB cable connections
Push-buttons and LEDs	2 push-buttons 4 LEDs
Expansion Connectors	One standard SYZYGY port (Zmod) Three standard Pmod ports
PCB adheres to PC/104 form factor and includes the standard mounting holes	Board is 3.775” x 3.550” (95.89 mm x 90.17 mm).

詳細資訊線上購買

Cora 系列規格

Cora Z7 │ Xilinx Zynq-7000 ARM/FPGA SoC 開發板

Product Variant	Cora Z7-10	Cora Z7-07S
Zynq Part	XC7Z010-1CLG400C	XC7Z007S-1CLG400C
ARM Processor Cores	2	1
1 MSPS On-chip ADC	Yes	Yes
Look-up Tables (LUTs)	17,600	14,400
Flip-Flops	35,200	28,800
Block RAM	270 KB	225 KB
Clock Management Tiles	2	2

詳細資訊線上購買

Zebboard 系列規格

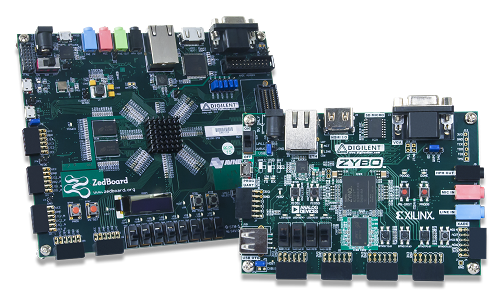

ZedBoard │ Zynq-7000 ARM+FPGA進階級處理器+全可編程邏輯智能互聯開發系統

Zedboard 200.171 PNG

Xilinx Zynq-7000 AP SoC XC7Z020-CLG484
Dual-core ARM Cortex™-A9
512 MB DDR3
256 MB Quad-SPI Flash
On-board USB-JTAG Programming
10/100/1000 Ethernet
USB OTG 2.0 and USB-UART
Analog Devices ADAU1761 SigmaDSP® Stereo, Low Power, 96 kHz, 24-Bit Audio Codec
Analog Devices ADV7511 High Performance 225 MHz HDMI Transmitter (1080p HDMI, 8-bit VGA, 128x32 OLED)
PS & PL I/O expansion (FMC, Pmod, XADC)

詳細資訊線上購買

Cmod 系列規格

Cmod A7 │ Xilinx Artix-7 chip

Cmod A7

240 084

	Cmod A7-15T	Cmod A7-35T
FPGA part	XC7A15T-1CPG236C	XC7A35T-1CPG236C
1 MSPS On-chip ADC	Yes	Yes
Programming options	Quad-SPI Flash/JTAG	Quad-SPI Flash/JTAG
Look-up Tables (LUTs)	10,400	20,800
Flip-flops	20,800	41,600
Block RAM	112.5 KB	225 KB
Clock Management Tiles	5	5

詳細資訊線上購買

Cmod C2 │ CoolRunner-II CPLD 模組

Cmod S6 │ Xilinx Spartan-6 chip

Cmod S7 │ Xilinx Spartan-7 Chip

PYNQ 系列規格

PYNQ-Z1 │ 支援 Python 的 Zynq 開發板

Pynq Z1 200.153 PNG

ZYNQ XC7Z020-1CLG400C:
- 650MHz dual-core Cortex-A9 processor
- DDR3 memory controller with 8 DMA channels and 4 high performance AXI3 slave ports
- High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO
- Low-bandwidth peripheral controller: SPI, UART, CAN, I2C
- Programmable from JTAG, Quad-SPI flash, and microSD card
- Artix-7 family programmable logic
  - 13,300 logic slices, each with four 6-input LUTs and 8 flip-flops
  - 630 KB of fast block RAM
  - 4 clock management tiles, each with a phase-locked loop (PLL) and mixed-mode clock manager (MMCM)
  - 220 DSP slices
  - On-chip analog-to-digital converter (XADC)
Memory:
- 512MB DDR3 with 16-bit bus @ 1050Mbps
- 16MB Quad-SPI Flash with factory programmed globally unique identifier (48-bit EUI-48/64™ compatible).
- MicroSD slot
Power:
- Powered from USB or any 7V-15V source (see recommended products)
USB and Ethernet:
- USB-JTAG Programming circuitry
- USB-UART bridge
- USB OTG PHY (supports host only)
- Gigabit Ethernet PHY
Audio and Video:
- Electret microphone with pulse density modulated (PDM) output
- 3.5mm mono audio output jack, pulse-width modulated (PWM) format
- HDMI sink port (input)
- HDMI source port (output)
Switches, push-buttons, and LEDs:
- 4 push-buttons
- 2 slide switches
- 4 LEDs
- 2 RGB LEDs
Expansion Connectors:
- Two standard Pmod ports
  - 16 Total FPGA I/O
- Arduino/chipKIT Shield connector
  - 49 Total FPGA I/O
  - 6 Single-ended 0-3.3V Analog inputs to XADC
  - 4 Differential 0-1.0V Analog inputs to XADC

詳細資訊線上購買

PYNQ Grove System │ 系統附加板

Basys 系列規格

Basys 3 │ Artix-7 FPGA訓練板

Basys 3

Basys 3 200.137 PNG

Features the Xilinx Artix-7 FPGA: XC7A35T-1CPG236C
33,280 logic cells in 5200 slices (each slice contains four 6-input LUTs and 8 flip-flops)
1,800 Kbits of fast block RAM
Five clock management tiles, each with a phase-locked loop (PLL)
90 DSP slices
Internal clock speeds exceeding 450 MHz
On-chip analog-to-digital converter (XADC)
Digilent USB-JTAG port for FPGA programming and communication
Vivado Design Suite (Vivado Design Suite WebPACK edition can be downloaded for free from Xilinx). Expanded features are available through purchase of the Design Edition.
Free WebPACK™ download for standard use.
Micro-B USB cable not included.
Serial Flash
USB-UART Bridge
12-bit VGA output
USB HID Host for mice, keyboards and memory sticks
16 user switches
16 user LEDs
4-digit 7-segment display
4 Pmod ports: 3 Standard 12-pin Pmod ports, 1 dual purpose XADC signal / standard Pmod port

詳細資訊線上購買

Basys MX3 │ PIC32MX 訓練板

Basys MX3

Basys MX3 200.192 PNG

Processor/IC: Microchip PIC32MX370F512L Microcontroller
MIPS32® M4K® core runs up to 96 MHz using onboard 8 MHz oscillator
512 KB of Program Flash Memory
12KB of Boot Flash Memory
128 KB of SRAM
Four Direct Memory Access (DMA) Modules
Two SPI, Two I²C, and Five UART serial interfaces
Parallel Master Port (PMP) for graphics interfaces
Five 16-bit Timers/Counters
Five Input Capture Modules
Five Output Compare Modules
85 I/O pins
- 54 pins support Peripheral Pin Select (PPS) for function remapping

Software
- Designed for use with MPLAB X IDE
System Features
- 4 MB SPI Flash
- Onboard USB UART (USB Micro cable required, NOT INCLUDED)
  - Supports baud rates up to 1.25 MBaud
- Powered from USB or 5 V external power source
  - Standard barrel jack for 2.0 mm internal-diameter plug
  - No jumper select required

System Connectivity
- USB-UART Bridge
Interaction and Sensory Devices
- 8 Slide Switches
- 5 Buttons
- 1 Reset Button
- 8 LEDs
- 1 RGB LED
- Onboard 3-axis, 12-bit accelerometer
  - Programmable Motion Detection
  - I2C Interface with Programmable Interrupt
- Onboard FIR-compatible IrDA Module
  - Built-in Remote Control Transmission Function
  - Supports speeds up to 4 Mbps
- Onboard Audio Input and Output
  - MEMS Microphone with Adjustable Gain
    - Thumbwheel potentiometer for adjusting mic volume
  - PWM driven mono audio output with onboard speaker
    - Thumbwheel potentiometer for adjusting speaker volume
    - 3.5 mm jack for line out connection to external amplifier/speaker system
- Onboard Displays
  - 2x16 LCD Character Display with LED backlight
  - 4-Digit Seven Segment Display with red LEDs

Motor Control
- Onboard Dual H-Bridge Motor Driver
  - Supports up to two 1.5 A Brushed DC Motors or one stepper motor
  - Supports motor voltages up to 11 V
  - Terminal block provides easy connection to motors
- 2 Servo Connectors
Analog Input Control (AIC)
- Thumbwheel potentiometer for varying analog input between 0 to 3.3 V
- Two wire loops for ground and AIC
Expansion Connectors
- Two 2×6 Pmod host ports
  - SPI, UART, GPIO, PWM, analog in
- Terminal block for two DC motors or one stepper motor
- Two R/C servo connectors
- One I²C connector
Debugging
- On-board 30-pin Analog Discovery 2 connector
- On-board USB programmer/debugger
  - Program/debug the PIC32MX370 directly from MPLAB / MPLABX
Support
- 7 free and open-source teaching units complete with 15 labs
- Enough content to support one to two semesters of undergraduate embedded systems coursework

詳細資訊線上購買

Netfpga 系列規格

NetFPGA-1G-CML │ Kintex-7 FPGA開發板 / 支援 Stanford NetFPGA 架構 / 快速開發

NetFPGA 1G CML 200.131 PNG

Xilinx Kintex-7 XC7K325T-1FFG676 FPGA
X4 Gen 2 PCI Express
1-Gbit BPI Flash
SD card slot
Real time clock
Crypto-authentication chip
Can be powered inside or outside a PC using a standard ATX power supply with PCIe 6 pin or 6pin+2 connector. Please refer to reference manual for more detail
X16 4.5 MB QDRII+ static RAM (450 MHz)
X8 512 MB DDR3 dynamic RAM (800 MHz)
Low-jitter 200 MHz oscillator
Four 10/100/1000 Ethernet PHYs with RGMII
32-bit PIC microcontroller
USB microcontroller
Four on-board LEDs and four onboard general-purpose buttons
High pin count FMC connector (VITA 57) with 100 Select-IO and 4 GTX serial pairs
Two Pmod ports

詳細資訊線上購買

NetFPGA-SUME │ Virtex-7 FPGA 軟體定義網路 SDN 智能互聯系統級開發平台

	PYNQ Grove System Shield Adapter	PYNQ Grove System Adapter

Connector Standard:	Arduino Uno R3 Layout	2X6 Standard
# of Grove Connectors:	16 total	4 total

FPGA Development Boards & Kits

自適應智慧運算的
最佳入門硬體

透過 DIGILENT
學習 FPGA 的設計驗證

更廣泛的應用
深化您的研究領域

DIGILENT FPGA 硬體方案

USRP B205mini-i 規格

Genesys 系列規格

Eclypse 系列規格

Zybo 系列規格

Arty 系列規格

Nexys 系列規格

Nexys Video

USB104 系列規格

Cora 系列規格

Zebboard 系列規格

Cmod 系列規格

Cmod A7

Cmod C2

Cmod S7

Cmod S7

PYNQ 系列規格

Basys 系列規格

Basys 3

Basys MX3

Netfpga 系列規格

NetFPGA-SUME

和澄科技 Haley Technology

合作品牌

訂閱電子報

獲得最新的技術與產品訊息
享下筆訂單免運費

產品搜尋

FPGA Development Boards & Kits

自適應智慧運算的 最佳入門硬體

透過 DIGILENT 學習 FPGA 的設計驗證

更廣泛的應用 深化您的研究領域

DIGILENT FPGA 硬體方案

USRP B205mini-i 規格

Genesys 系列規格

Eclypse 系列規格

Zybo 系列規格

Arty 系列規格

Nexys 系列規格

Nexys Video

USB104 系列規格

Cora 系列規格

Zebboard 系列規格

Cmod 系列規格

Cmod A7

Cmod C2

Cmod S7

Cmod S7

PYNQ 系列規格

Basys 系列規格

Basys 3

Basys MX3

Netfpga 系列規格

NetFPGA-SUME

和澄科技 Haley Technology

合作品牌

訂閱電子報

獲得最新的技術與產品訊息享下筆訂單免運費

產品搜尋

自適應智慧運算的
最佳入門硬體

透過 DIGILENT
學習 FPGA 的設計驗證

更廣泛的應用
深化您的研究領域

獲得最新的技術與產品訊息
享下筆訂單免運費
