LXD21K4 │ 4 通道 16 位元 DAC FMC │ MIMO 雷達 醫療 航太應用 SDR

產品應用

  • MIMO Applications
  • Radar waveform generators
  • Digital Beam Forming
  • Medical systems
  • Telecommunicaton systems
  • Experimental Physics
  • Analog playback systems
  • Aerospace and test instrumentation
  • Software defined radio (SDR)

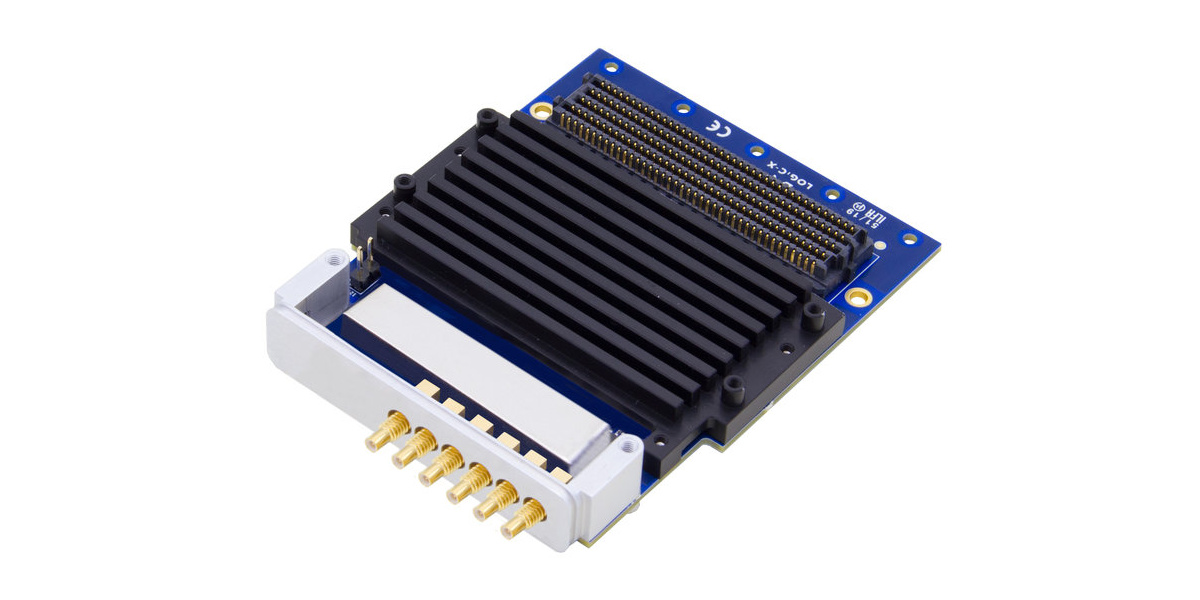

四通道 DAC FMC 模組

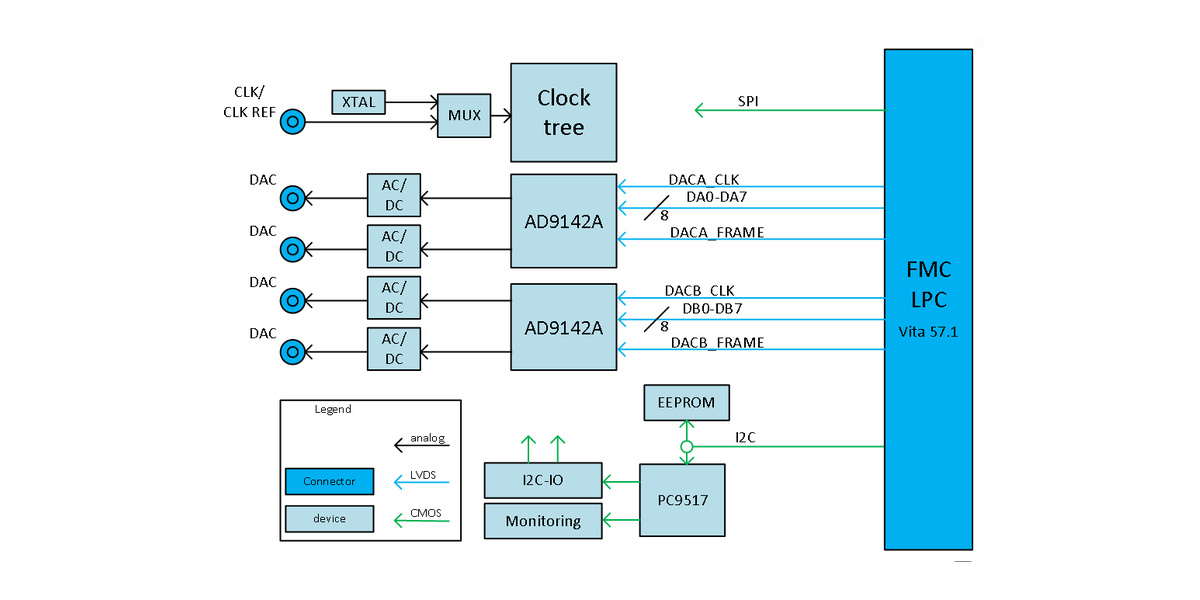

The LXD21K4 provides four 16-bit D/A channels with up to 310 Msps data rate and a 1.24 Gsps update rate. This is the only FMC card on the market to offer this number of channels with LVDS digital signalling interfaces. The design is based on the Analog devices AD9142A digital to analog converters.

類比輸入/輸出

Depending on the application requirements it is possible to order the LXD21K4 with either a DC coupled or an AC coupled analog front end. The DC coupled interface is meant for signal acquisitions and playback in the first Nyquist zone while the AC coupled inputs also offers the option for signal acquisition and playback in the second Nyquist zone.

16位元

The ADC offers 12-bits resolution further contributing to achieve best in class signal to noise ratios.

LVDS訊號功能

The DAC devices make use of LVDS signaling for their data interfaces. This allows easy integration of the LXD21K4 into user FPGA designs without the need to acquire expensive and complex JESD204B interface cores. Thanks to the low pin count implementation the LXD21K4 will work on all Xilinx development boards as well as the Logic-X FPGA FMC carrier boards.The DAC devices make use of LVDS signaling for their data interfaces. This allows easy integration of the LXD21K4 into user FPGA designs without the need to acquire expensive and complex JESD204B interface cores. Thanks to the low pin count implementation the LXD21K4 will work on all Xilinx development boards as well as the Logic-X FPGA FMC carrier boards.

時脈功能

The onboard low noise clock generator ensures easy integration into small single board systems as well as standalone operation. For larger systems it is possible to easily synchronize multiple boards by providing an external reference clock. This is a special feature offered by the onboard clock PLL.


產品規格

Number of analog input channels:4
Front panel IO connector type:SSMC/ MMCX
Front panel IO type:DAC
Form Factor:FMC - Low pin count (LPC)

Analog output specification

Output maximum sample rate:310 Msps (1210 MHz update rate)
Output number of bits:16 bits resolution
Impedance:50 Ω
Output impedance AC coupled:10 MHz - 400 MHz
Output bandwidth DC coupled:DC - 200 MHz
Output AC full scale power:+6 dBm
Output DC full scale power:+12 dBm

Legislation and Environmental

Supported operating temperature (2選1):Commercial (0°C ~ 70°C) / Industrial (-40°C ~ 85°C)
Ruggedization:standard Commercial Air-cooled and Rugged Conduction- cooled
ROHS Compliant:Yes - RoHS Phthalates Compliant
SVHC:Product contains no SVHC
Country of origin:the Netherlands (Europe) (荷蘭製造生產)
ECCN :3A002.h.1.e

Conformal Coating (2選1):No coating / Mil-I-46058-C Confomal Coating

011 yes 128   產品文件:產品規格表
