產品應用
- MIMO Applications
- Radar waveform receivers
- Digital Beam Forming
- Medical systems
- Telecommunicaton systems
- Experimental Physics
- Analog playback systems
- Aerospace and test instrumentation
- Software defined radio (SDR)
8 通道 16 位元 ADC FMC 模組

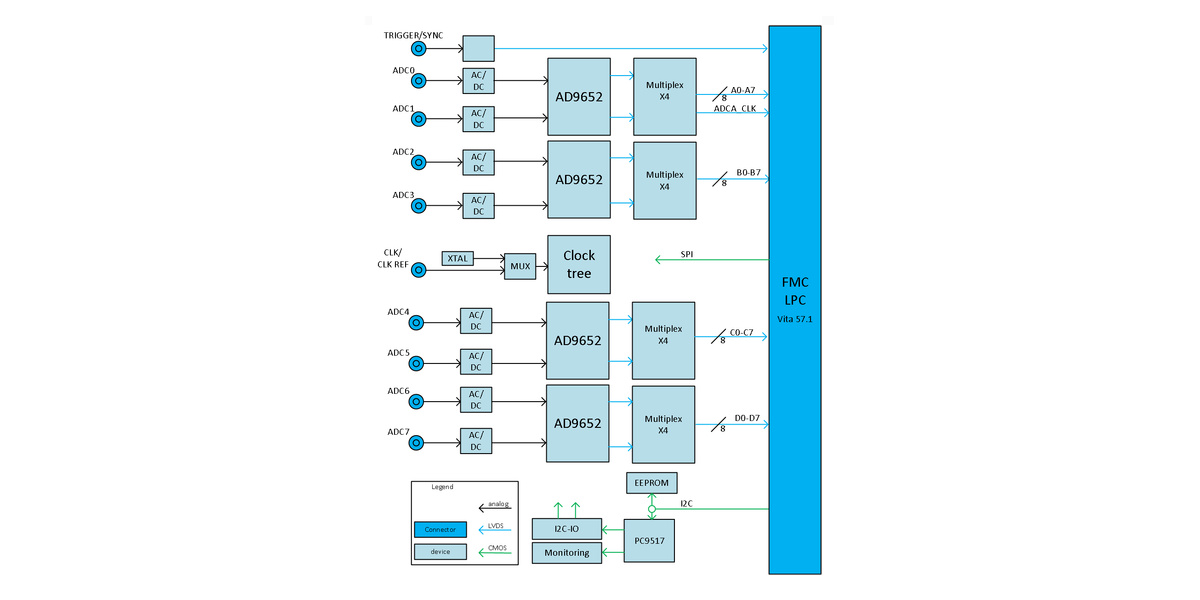

The LXD11K8 provides eight 16-bit A/D channels with up to 310 Msps data rate. All the data interfaces are based on LVCMOS and LVDS signalling. The design is based on the Analog devices AD9652 analog to digital converters.
類比輸入/輸出
Depending on the application requirements it is possible to order the LXD11K8 with either a DC coupled or an AC coupled analog front end. The DC coupled interface is meant for signal acquisitions in the first Nyquist zone while the AC coupled inputs also offers the option for signal acquisition in the second Nyquist zone.
16位元
The ADCs offer 16-bits resolution further contributing to achieve best in class signal to noise ratios.
LVDS訊號功能
The ADC devices make use of LVDS signaling for their data interfaces. This allows easy integration of the LXD11K8 into user FPGA designs without the need to acquire expensive and complex JESD204B interface cores. Furthermore the low pin count implementation make sure the card can be used on all Xilinx development boards as well as the Logic-X FPGA FMC carrier boards.
時脈功能
The onboard low noise clock generator ensures easy integration into small single board systems as well as standalone operation. For larger systems it is possible to easily synchronize multiple boards by providing an external reference clock. This is a special feature offered by the onboard clock PLL.
產品規格
Number of analog input channels：8
Front panel IO connector type：SSMC or MMCX
Front panel IO type：ADC
Form Factor：FMC - High pin count (HPC)
Analog input specification
Input coupling：AC or DC coupled
Input maximum sample rate：310 Msps
Input number of bits：16 bits resolution
Impedance：50 Ω
Input bandwidth AC coupled：10 MHz - 400 MHz
Input bandwidth DC coupled：DC - 200 MHz
Input AC full scale power：+6 dBm
Input DC full scale power：+12 dBm
Legislation and Environmental
Supported operating temperature：Commercial (0°C ~ 70°C) and Industrial (-40°C ~ 85°C)
Ruggedization：standard Commercial Air-cooled and Rugged Conduction- cooled
ROHS Compliant：Yes - RoHS Phthalates Compliant
SVHC：Product contains no SVHC (15-May-2020)
Country of origin：the Netherlands (Europe)
Tariff Number (HS code)：854231 - Electronic printed circuits
ECCN：3A002.h.1.e
 |
產品文件：產品規格表 |
