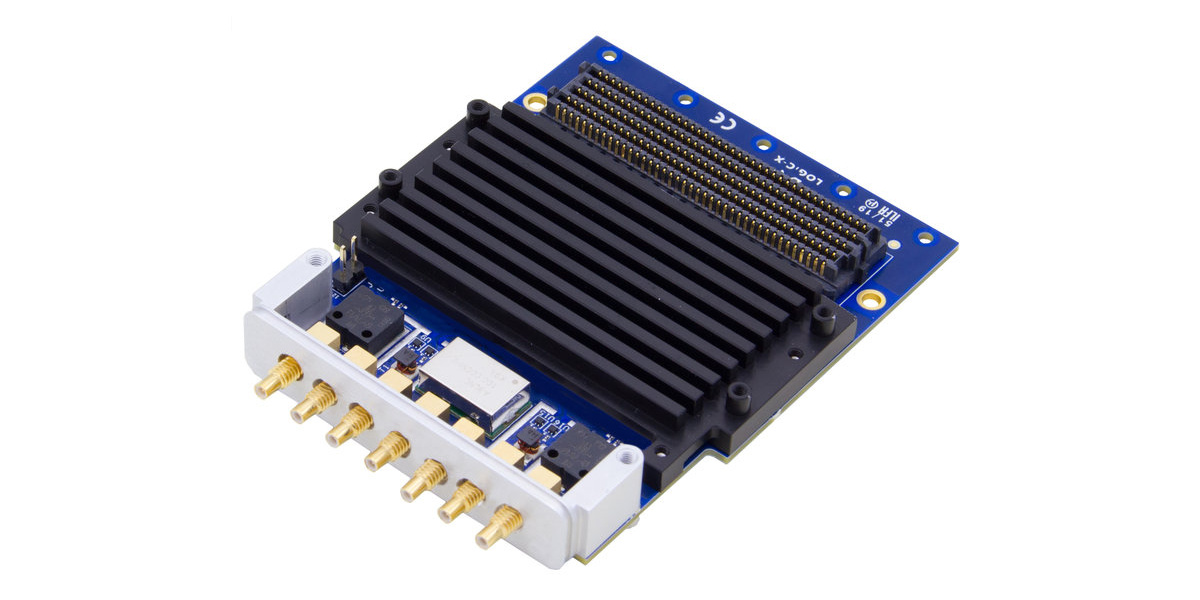

LXD10K0 │ 12 位元低延遲寬頻 ADC │ 電子戰 雷達 DRFM 醫療 電信系統

產品應用

  • Electronic Warfare systems
  • Radar waveform generators and receivers
  • Advanced digital radio frequency memory (DRFM) systems
  • Medical systems
  • Telecommunicaton systems

以5.4 Gsps 解析度進行 12 位元解析度的低延遲數據擷取

With the LXD10K0 Logic-X provides a unique analog interface product that is based on the 12-bits low latency wide bandwidth ADC (EV12AS350A) and from Teledyne E2V. Multi card synchronization is supported thanks to a flexible clock tree and external synchronization trigger input.

類比輸入

With an analog input stage that has a very wide input bandwidth from 0.5MHz up-to 4.8GHz and the low latency 5.4Gsps ADC from E2V (EV12AS350A) the LXD30000 delivers unmatched performance with regards to SFDR, close in phase noise and latency (7.2 ns) on its analog input channel. Sampling at 5.4 Gsps offers an instantaneous bandwidth of 2.7GHz.

12位元

The ADC offers 12-bits resolution further contributing to achieve best in class signal to noise ratios.

低延遲

It is possible to achieve a very low latency from the RF input to the RF output because of the LVDS connectvity to the host carrier. This can be less than 18 ns, depending on the carrier that is used.

時脈功能

The onboard low noise clock generator ensures easy integraton into small single channel systems as well as standalone operaton. For larger systems it is possible to directly provide the sample clock to the front panel SSMC connector or to synchronize the local clock generator to an external reference clock.


產品規格

Number of analog input channels:1
Front panel IO connector type:SSMC
Front panel IO type:ADC
Form Factor:FMC - High pin count (HPC)

Analog input specification

Input coupling:AC coupling
Input maximum sample rate:5.4 Gsps
Input number of bits:12 bits resolution
Impedance:50 Ω
Input bandwidth AC coupled:0.5 MHz - 4.8 MHz
Input AC full scale power:+ 8.5 dBm

Legislation and Environmental

Supported operating temperature (2選1):Commercial (0°C ~ 70°C) / Industrial (-40°C ~ 85°C)
Ruggedization:standard Commercial Air-cooled and Rugged Conduction- cooled
ROHS Compliant:Yes - RoHS Phthalates Compliant
SVHC:Product contains no SVHC
Country of origin:the Netherlands (Europe) (荷蘭製造生產)
ECCN :3A002.h.1.c

Conformal Coating (2選1):No coating / Mil-I-46058-C Confomal Coating

011 yes 128   產品文件:產品規格表
