Product Summary
The proFPGA product family is a complete, scalable, and modular multi FPGA Prototyping solution, which fulfills highest needs in the area of FPGA based Prototyping. Because of its modular and scalable system architecture, the user has maximum flexibility and reusability.

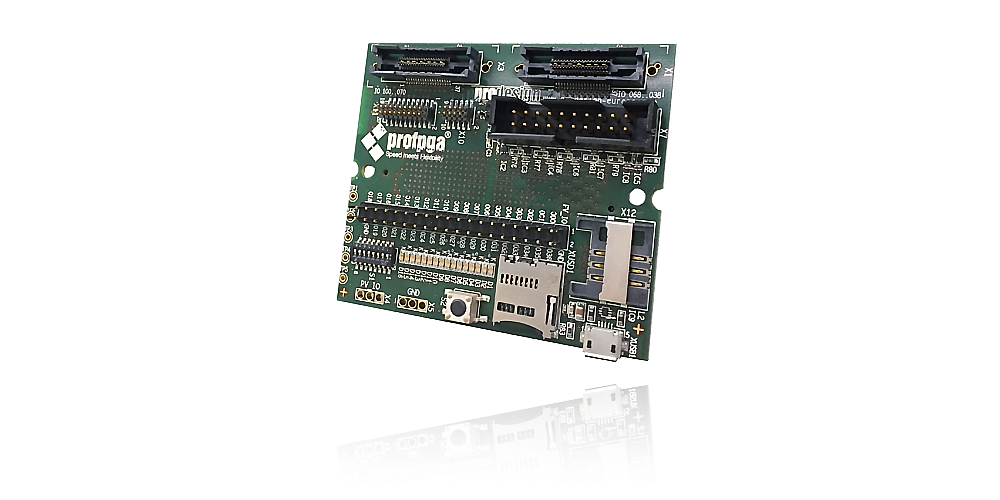

Part of this modular and flexible system concept is the proFPGA SoftTouch Debug board. This daughter board occupies one extension site of the proFPGA system and offers various connectors and interfaces for debugging purpose. It provides 2 x Mictor connectors to interface the proFPGA system to standard Logic Analyzers or other measurement equipment, one 20x2 pin connector for general purpose IOs, one USB-UART debug interface over a micro USB connector (UART_TXD, UART_RXD, UART_RTSn, UART_CTSn), one CPUARM JTAG interface, capability for Single Wire Debug via Pin JTAG-TMS and direction controlled by FPGA Pin SWDIO, one Cortex Debug Connector 0,05" 10-Pin Header, one Cortex Debug + ETM Connector 0,05" 20-Pin Header, 16 LEDs (D1…D16 connected to IO_000…IO_015), a single push button, a 8 position half pitch dip switch, a Mini Sim Slot (2FF), a μSD-Card slot and PV_IO power (X4) and GND (X5) connector.
| proFPGA Lab & Debug Board SWD IO | |
| Debug Interface 1 | 2 x Mictor connectors to interfacee to standard Logic Analyzers or other measurement equipment |
| Debug Interface 2 | 1 x 20x2 pin connector for general purpose IOs |
| Debug Interface 3 | 1 x USB-UART debug interface over a micro USB connector |
| Debug Interface 4 | 1x CPU ARM JTAG Interface |
| Debug Interface 5 | 1 x Cortex Debug Connector 0,05" 10-Pin Header |
| Debug Interface 6 | 1 x Cortex Debug + ETM Connector 0,05" 20-Pin Header |
| Others | 16 LEDs for general purpose (4x red, 4x blue, 4x yelllow, 4x green) 1 x push button 1 x 8 position half pitch dip switch 1 x Mini Sim Slot (2FF) 1 μSD-Card slot 1 x PV_IO power (X4) and GND (X5) connector 1 x Capability for Single Wire Debug and direction controlled by FPGA Pin SWDIO |
| Order Code | PROF-A-I-DVI |
 |
