Product Summary
The proFPGA product family is a complete, scalable, and modular multi FPGA Prototyping solution, which fulfills highest needs in the area of FPGA based Prototyping. Because of its modular and scalable system architecture, the user has maximum flexibility and reusability.

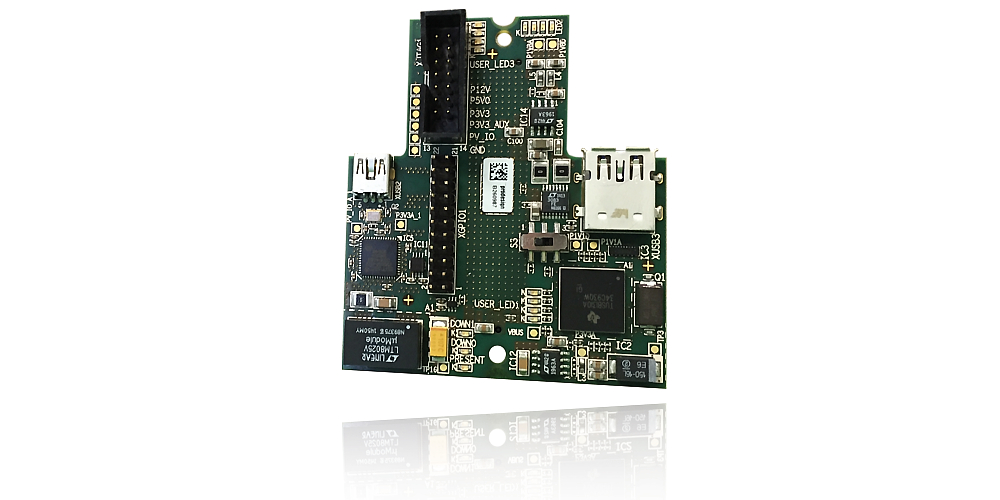

Part of this modular and flexible system concept is the proFPGA USB 2.0 & 3.0 Interface board. This daughter board occupies one extension site of the proFPGA system and provides two USB ports. One USB port is available through a mini USB connector and is connected to a USB3250 (Microchip). The USB3250 is a hi-speed USB device transceiver with UTMI interface. This USB port can be used to implement a USB 2.0 device in the FPGA with UTMI interface.
The second USB port is available through a USB A female connector and is connected to a TUSB1310A (Texas Instruments). The TUSB1310A is a USB 3.0 Transceiver which can be either used as an USB host or device.
| proFPGA USB 2.0 & 3.0 Interface Board | |
| proFPGA Connectors | 1x proFPGA extension board connector (1 at bottom-side) |
| Interfaces | 1x Mini USB connector connected to USB3250 (USB 2.0 device mode) 1x USB A female connector connected to TUSB1310A (USB 3.0 device and host mode) |
| Others | 12 user LEDs (3x blue, 3x green, 3x red, 3x yellow) connected to FPGA pins GPIO header with 18 FPGA signals, 2x 1.8 V, 2x GND 14-pin JTAG connector (ARM JTAG) |
| Product article number | PROF080 EB-PDS-USB2-3-R1 |
| Order Code | PROF-A-I-USB2-3 |
 |
