Product Summary
The proFPGA product family is a complete, scalable, and modular multi FPGA Prototyping solution, which fulfills highest needs in the area of FPGA based Prototyping. Because of its modular and scalable system architecture, the user has maximum flexibility and reusability.

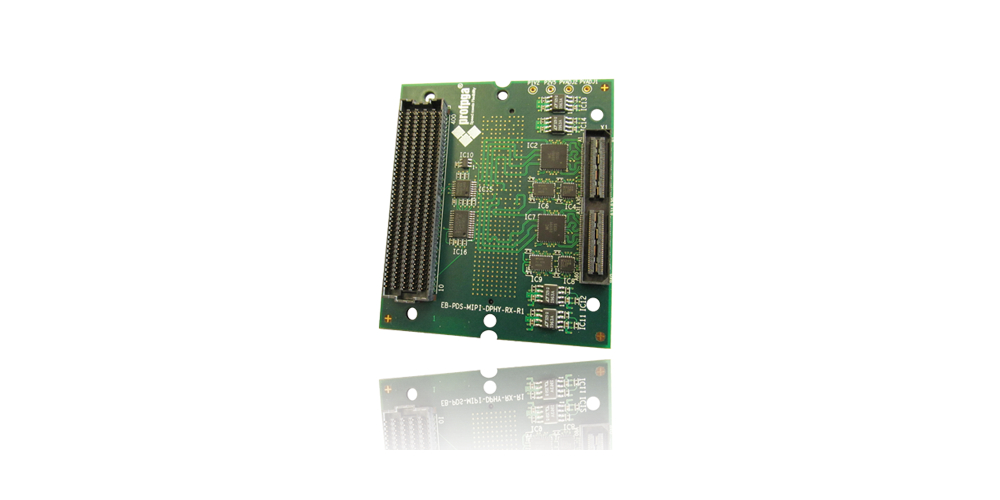

Part of this modular and flexible system concept is the proFPGA MIPI Interface board. This daughter board occupies one extension site of the proFPGA system and provides 2 x camera interfaces, each one clock lane and up to four data lanes and offers transfer rates of up to 2.5Gbps (HS mode) and 20MBps (LPDT mode). Further the board provides 8x GPIO a I2C, a reference clock available for each camera Interface and one proFPGA top connector to make unused IOs available.
| proFPGA MIPI Interface Board | |
| proFPGA Connectors | 1x proFPGA extension board connector (1 at bottom-side) |
| Interfaces | 2 x camera interfaces, each one clock lane and up to four data lanes Compliant to MIPI D-PHY DSI, CSI-1, CSI-2 standard |
| Others | Transfer rates up to 2.5Gbps (HS mode), 20MBps (LPDT mode) 8x GPIO, I2C and a reference clock available for each camera Interface 1 x proFPGA top connector to make unused IOs available |
| Product article number | PROF050 EB-PDS-DPHY-RX-R1 |
| Order Code | PROF-A-I-MIPI |
 |
產品文件：proFPGA 產品總覽 (EN) |
 |
產品編號：PROF-A-I-MIPI |
