Product Summary
The proFPGA product family is a complete, scalable, and modular multi FPGA solution, which fulfills highest needs in the area of FPGA based Prototyping. Because of its modular and scalable system architecture, the user has maximum flexibility and reusability.

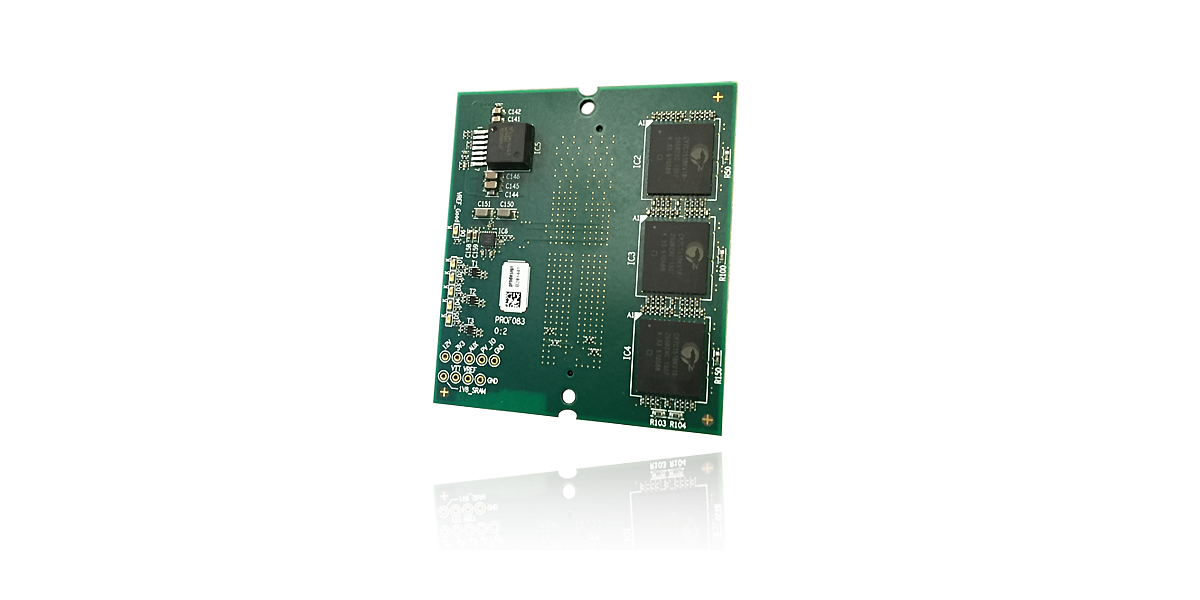

Part of this modular and flexible system concept is the proFPGA SRAM board. This daughter board occupies one extension site of the proFPGA system and offers up to 144 Mbit memory depth per SRAM accessed over a 18 bit databus. The proFPGA SRAM Board is available in two different configurations. EB-PDS-SRAM-R1: 3x CY7C1618KV18-250BZXC (500MBit/s), EB-PDS-SRAM-R2: 3x CY7C1618KV18-333BZXC (666MBit/s). Depending on the used SRAM type you can run with 250 MHz or 333 MHz. Further the board offers 5 LEDs for debugging.
| proFPGA SRAM Board | |
| SRAM memory types | EB-PDS-SRAM-R1: 3x CY7C1618KV18-250BZXC (500MBit/s) EB-PDS-SRAM-R3: 3x CY7C1618KV18-333BZXC (666MBit/s) |
| Capacity | 72 or 144 Mbit memory depth per SRAM |
| Frequency | 250 MHz or 333 MHz (depending on SRAM type) |
| Databus | 54 bit (18 bit per SRAM) |
| Others | Equipped with 5 LEDs for debugging and ID chip for automatic board recognition |
| Product article number | PROF083 EB-PDS-SRAM-R1/R2 |
| Order code | PROF-A-M-SREB-1 (500MBit/s), -SREB-2 (666MBit/s) |
 |
產品文件：proFPGA 產品總覽 (EN) |
 |
產品編號： PROF-A-M-SREB-1 (500MBit/s), -SREB-2 (666MBit/s) |
