Product Summary
The proFPGA product family is a complete, scalable, and modular multi FPGA solution, which fulfills highest needs in the area of FPGA based Prototyping. Because of its modular and scalable system architecture, the user has maximum flexibility and reusability.

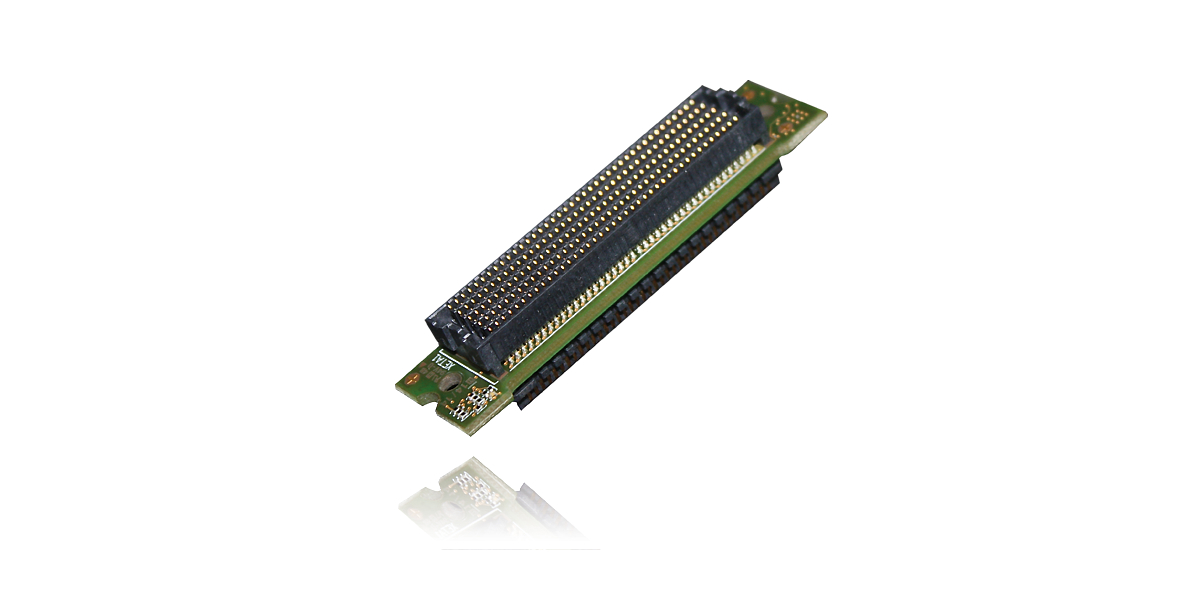

Part of this modular and flexible system concept is the proFPGA Riser Interconnect Board. The proFPGA Riser Interconnect Board provides a proFPGA Bottom and a proFPGA Top Connector. It is used wherever due to height incompatibility two different extension boards cannot be plugged on-top of each other.
| proFPGA Riser Interconnect Board | |
| Connectors | one proFPGA Bottom Connector, one proFPGA Top Connector |
| Supported proFPGA FPGA Modules | FM-XC7V2000T FM-XC7VX330T XC7VX690T-R3 FM-XC7Z100-R1 FM-XCVU440 |
| Feature | Up to 5 Riser-Boards can be plugged on top of each other |
| Others | I²C subsystem including I²C IDPROM, I²C multiplexer and I²C GPIO expander |
| Product article number | PROF056 EB-PDS-RISER-R1 |
| Order code | PROF-A-IC-RIS |
 |
產品文件：proFPGA 產品總覽 (EN) |
 |
產品編號：PROF-A-IC-RIS |
