Product Summary

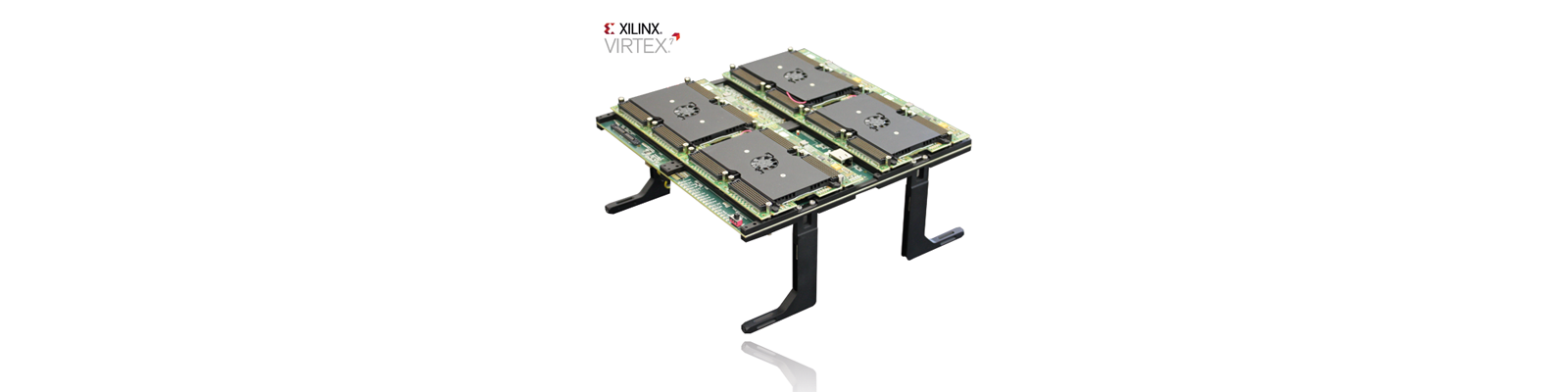

The proFPGA quad V7 system is a complete, scalable, and modular multi FPGA Prototyping solution, which fulfills highest needs in the area of FPGA based Prototyping. It addresses customers who need a scalable and most flexible high performance ASIC Prototyping solution for early software development and real time system verification. The innovative system concept and technologies offer highest flexibility and reusability for several projects, which guarantees the best return on invest.

Highest Flexibility
The system architecture is based on a modular and scalable system concept. The FPGAs are assembled on dedicated FPGA modules, which will be plugged on the proFPGA motherboard. This offers the highest flexibility to use for example different FPGA types in one system or to scale a system in increments of one FPGA. Besides the user has nearly 100% access to all available I/Os of the FPGA, which gives him maximum freedom regarding the FPGA interconnection structure. Hence the prototyping system can be adapted the best way to meet the demands of any user design. Furthermore the system offers a total of 32 extension sites on the top and bottom site for standard proFPGA or user specific extension boards like DDR-3 memory, high performance interface, interconnection or adaptor boards.

Maximum Performance
The well designed boards of the proFPGA system are optimized and trimmed to guarantee best signal integrity and to achieve highest performance. The high speed boards together with the specific high speed connectors allow a maximum point to point speed of up to 1.8 Gbps over the standard FPGA I/O and up to 12.5 Gbps over the MGT of the FPGA. This fast performance combined with the high interconnection flexibility offer the designer an maximum speed of his design running in the proFPGA system.

Biggest Capacity
Equipped with up to 4 Xilinx Virtex 7 XCV2000T FPGA modules, the proFPGA quad system can handle up to 48 M ASIC gates alone on one board. Due to the fact, that multiple proFPGA quad or duo systems can be stacked or connected together, there is unlimited scalability and no theoretical maximum in capacity.

Extensive User Comfort
The proFPGA prototyping system provides an extensive set of features and tools, like remote system configuration, integrated self and performance test, automatic board detection, automatic I/O voltage programming, system scan and safety mechanism, which extraordinarily simplifies the usage of the FPGA based system. The proFPGA system uses an innovative dual-stage clock generator architecture. Each proFPGA motherboard is capable of distributing up to 8 true asynchronous master beats. Each master beat may be used to derive a virtually unlimited number of clock domains inside the FPGAs. With the unique proFPGA synchronization scheme, clock domains and associated reset signals can be generated fully phase-synchronous over all FPGAs on the motherboard and over multiple motherboards.

Specification

FPGSs

  • Up to 4 Xilinx Virtex XC7V2000T FPGA Modules



Capacity

  • Up to 48 M ASIC gates on one board (12 M ASIC gates per FPGA Module)



FPGA-internal memory

  • Up to 186,048 kbits on one board (46,512 kbits per FPGA Module)



Signaling rate

  • Up to 1.8 Gbps (standard I/O)/ 12.5 Gbps (MGT)



Extension sites

  • Up to 32 Extension sites with High Performance (up to 21 Gbps) connectors



I/O resources

  • Overall 4336 signals for I/O and inter FPGA connection
  • 1084 free I/Os per FPGA Module
  • 4x148 I/Os to top side connectors
  • 3x148 and 1x48 I/Os to bottom side connectors
  • Single-ended or differential



High Speed I/O transceivers

  • 64 dedicated MGTs running up to 12.5 Gbps
  • 16 MGTs (12.5 Gbps) per FPGA Module



FPGAs interconnections

  • Flexible via high-speed interconnection boards or cables



Voltage regions

  • 32individually adjustable I/O voltage regions
  • 8 individually adjustable voltage regions per FPGA Module
  • Stepless from 1.2 up 1.8V
  • Automated detection of daughter card and adjustment of right voltage



Configuration

  • With host software via Ethernet, USB 2.0, PCIe or standalone over USB stick



Clocking

  • 256 differential external clock inputs
  • 64 differential clock inputs per FPGA Module
  • 8 differential clock inputs per connector
  • 4 external clock/sync inputs/outputs over HF SMA connectors
  • X- local clocks
  • 8 global clock and sync signal inputs per motherboard
  • X fully synchronous derived clocks with sync signals



Data exchange

  • On board DMBI (Device Message Box Interface)
  • Data exchange rate:
  • Ethernet (up to 100 Mbps)
  • USB
  • PCIe (up to 4 Gbps)



Power

  • External (optional) ATX Power Supply (12 V, 24 - 35 A output)



Dimensions

  • 11.81" x 0.95" x 12.20" / 300 mm x 24 mm x 310 mm (width x height x depth)
  • 2.5 kg weight

System Architecture

proFPGA quad V7 FPGA Prototyping System Configurations
proFPGA quad V7 FM1 proFPGA quad V7 FM2 proFPGA quad V7 FM3 proFPGA quad V7 FM4
Extension Sites 8 16 24 32
FPGA Modules 1 2 3 4
FPGAType Xilinx Virtex XC7V2000T Xilinx Virtex XC7V2000T Xilinx Virtex XC7V2000T Xilinx Virtex XC7V2000T
Logic Capacity (ASIC Gates) 12M 24M 36M 48M
FPGA Memory 46,512kbits 93,024kbits 139,536kbits 186,048kbits
I/O Resources 1100 2200 3300 4400
High Speed I/O Transceivers 16 32 48 64
Adjustable Voltage Regions 8 16 24 32
Interconnections flexible flexible flexible flexible
Clock Inputs 64 + 4 124 + 4 192 + 4 256 + 4
Global Clocks 8/x-derived 8/x-derived 8/x-derived 8/x-derived
Order Code PROF-DUO-VUS-FM1 PROF-DUO-VUS-FM2 PROF-DUO-VUS-FM3 PROF-DUO-VUS-FM4



011 yes 128   產品文件:產品型錄(EN) │proFPGA 產品總覽 (EN)
20171115 04   產品編號:PROF-DUO-VUS-FM1, PROF-DUO-VUS-FM2, PROF-DUO-VUS-FM3, PROF-DUO-VUS-FM4
