TE0876 Series|IceZero|Lattice ICE40

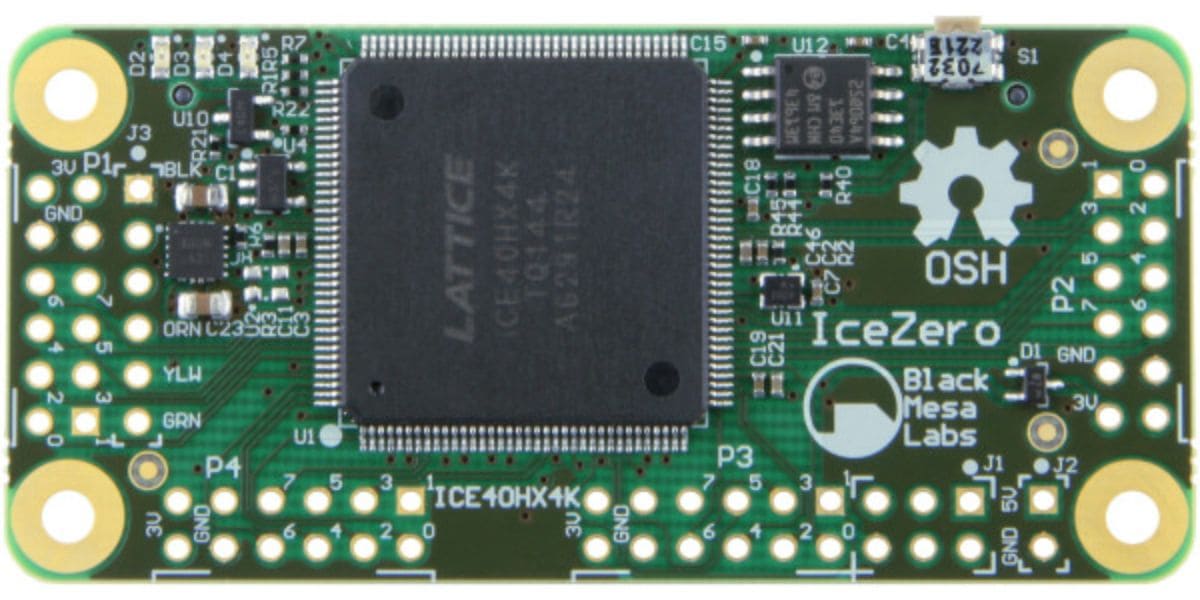

TE0876 Series-IceZero with Lattice ICE40HX, 4 Mbit external SRAM, 3.05 x 6.5 cm

The IceZero is a low cost general purpose Lattice FPGA platform for the Raspberry Pi. It includes 4 Mbit of external SRAM and 4 2x6 Pmod interfaces for 32 3.3V LVCMOS IO's to external expansion devices. The board is powered and configured over the standard 2x20 Raspberry Pi header. The ICE40HX4K FPGA is fully supported by Clifford Wolf’s "icoTC" Project IceStorm tool chain.

Example designs (both Verilog and Python) for the SUMP2 Logic Analyzer and general purpose GPIO (inputs, outputs, PWM servo control, etc.) are available from the Black Mesa Labs website. Mesa Bus Protocol virtual PCI 32bit communication between FPGA and Pi is supported over the Pi's 32 MHz SPI serial interface. Black Mesa Labs strives to provide multiple free open-source example designs for the IceZero platform for expanding RaspberryPi hardware interface capabilities -bitstream complete- no FPGA design experience required.

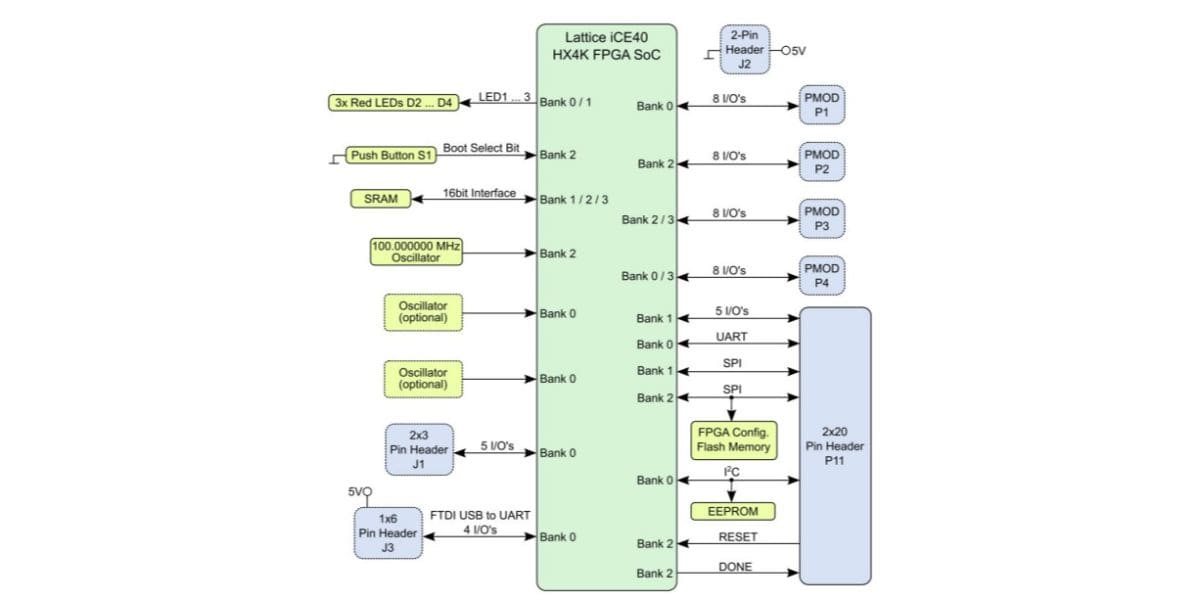

  2022 11 17 103043



Key Features

  • FPGA: Lattice iCE (iCE40HX)
  • Size: 30.5 x 65 mm
  • Supported by fully open source FPGA toolchain (icoTC)
  • Full FPGA design flow on Rasperry Pi (all open source)
  • Fast FPGA configuration from Rasperry Pi
  • Raspberry Pi HAT Compatible
  • Compatible in size with Raspberry PiZero and PiZero-W

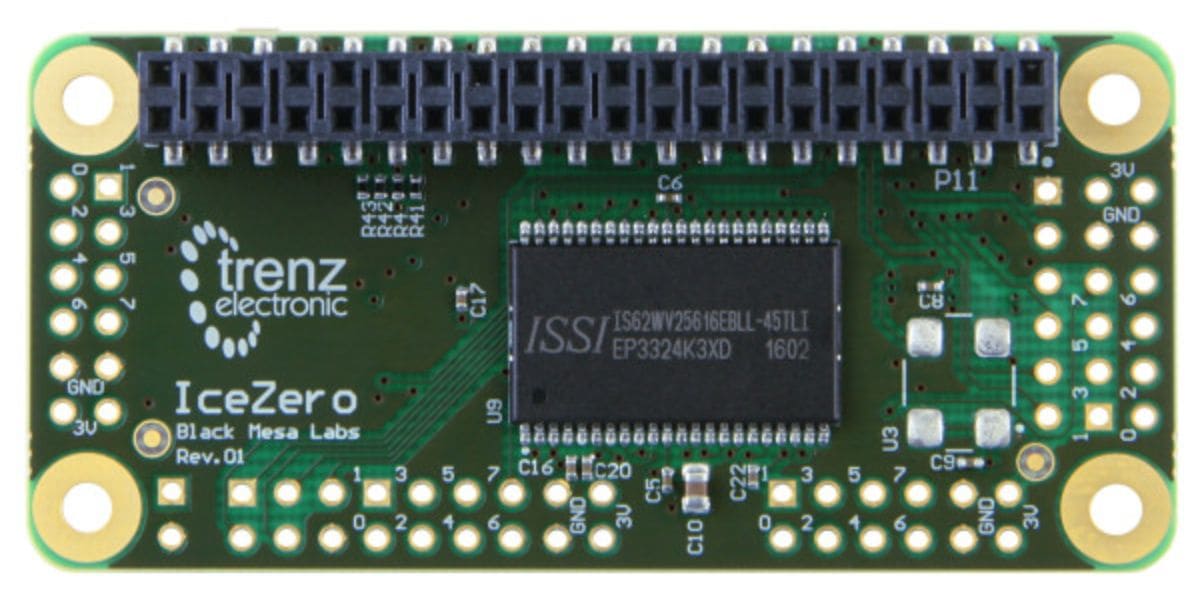

  • 4 Mbit external SRAM
  • User LED: 3
  • SPI Flash for FPGA self-configuration
  • User Clock: 100 MHz
  • Pmod connectors: 4 (not assembled by default)

Scope of Delivery

  • 1 x TE0876-02-A Trenz Electronic IceZero module with Lattice iCE40HX
20171115 04

產品編號:TE0876-02-A
