TEL0001 Series|LXO2000|Lattice XO2

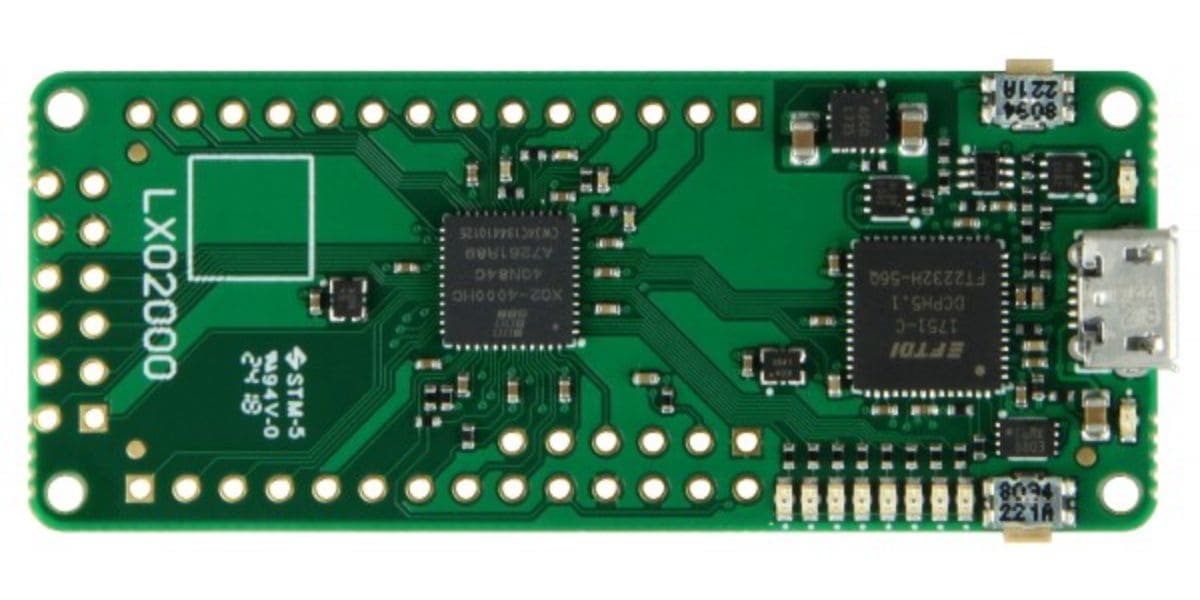

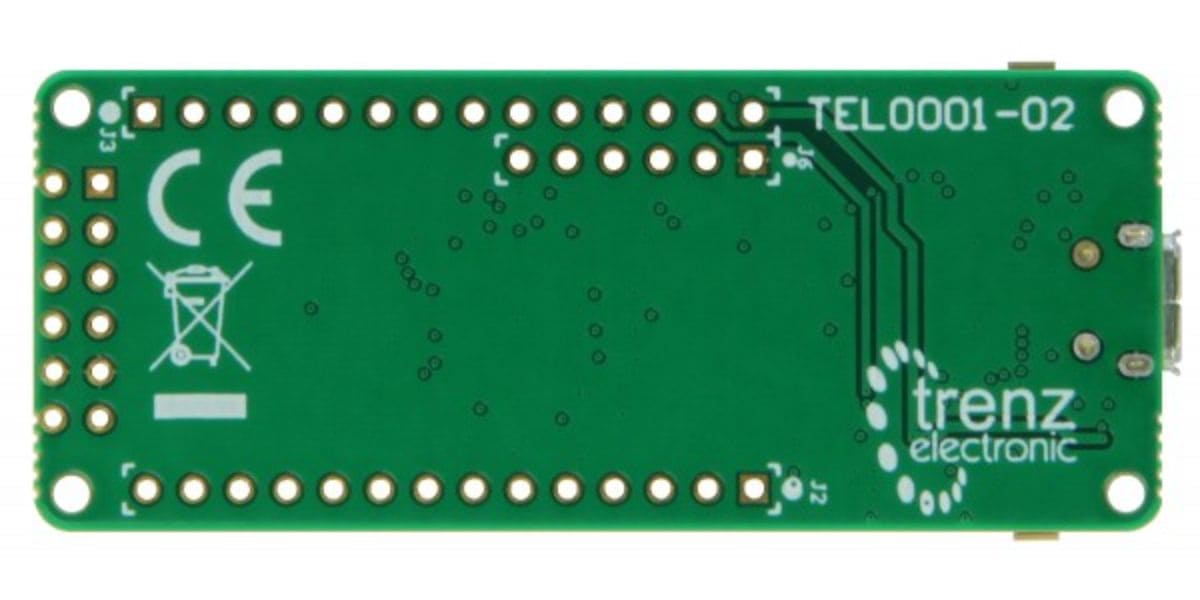

TEL0001 Series-LXO2000 with Lattice XO2-4000, On-Board USB/JTAG, 2.5 x 6.15 cm

The TEL0001 "LXO2000" is a low cost FPGA module integrating a Lattice XO2-4000 and on-board USB/JTAG. It's compatible to the Arduino MKR standard.

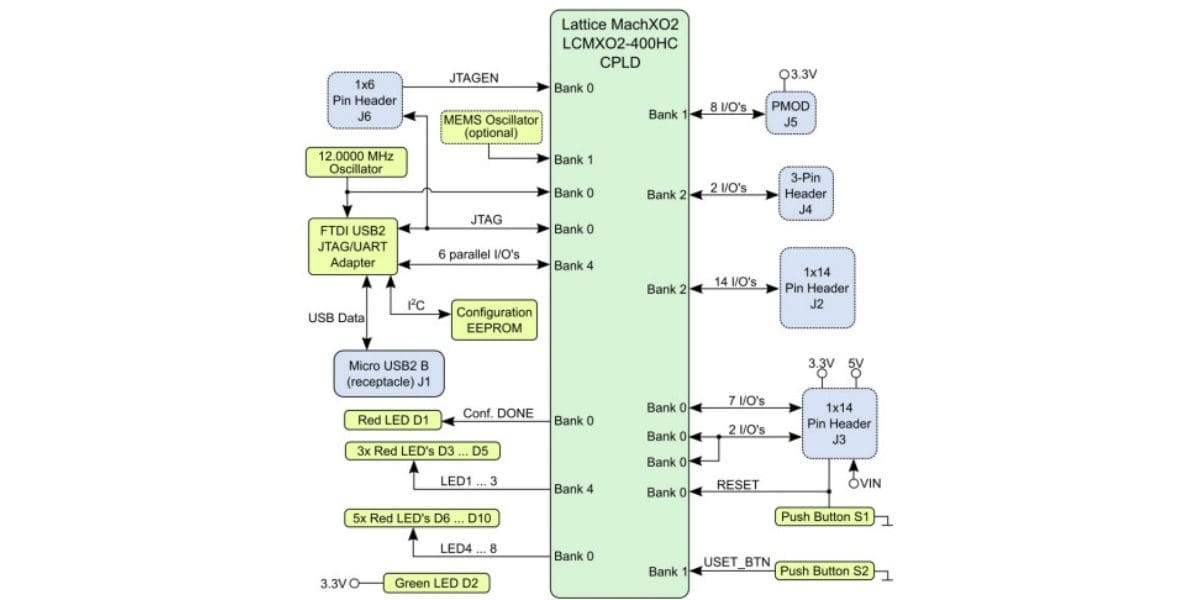

  2022 11 17 102544



Key Features

  • Lattice LCMXO2-4000HC-4QN84C FPGA
  • Form factor 2.5 x 6.15 cm
  • On-board USB/JTAG
  • On-board USB/serial
  • Total I/O
    • 22 I/O on MKR header
    • Optional Pmod header (8 I/O)
  • 2 push buttons
  • 8 LEDs
  • 100 MHz MEMS oscillator
  • Supply: USB or 5 V from pin header

Scope of Delivery

  • 1 x TE0001-02 Trenz Electronic FPGA module with Lattice XO2-4000
20171115 04

產品編號:TEL0001-02
