TEI0009 Series|C10LP RefKit|Intel Cyclone 10

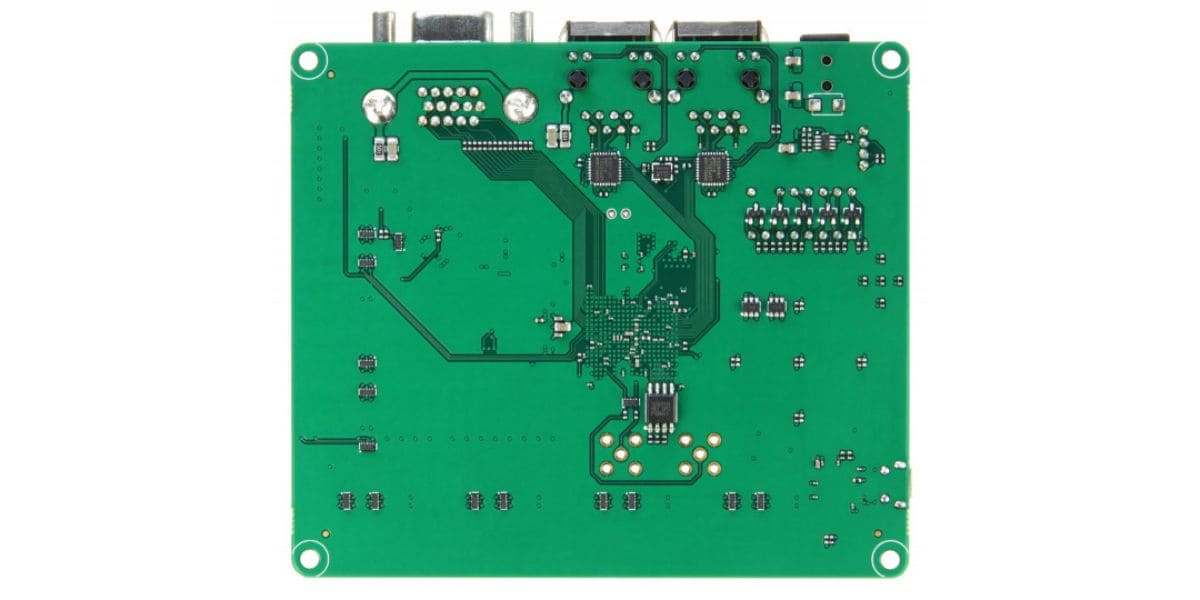

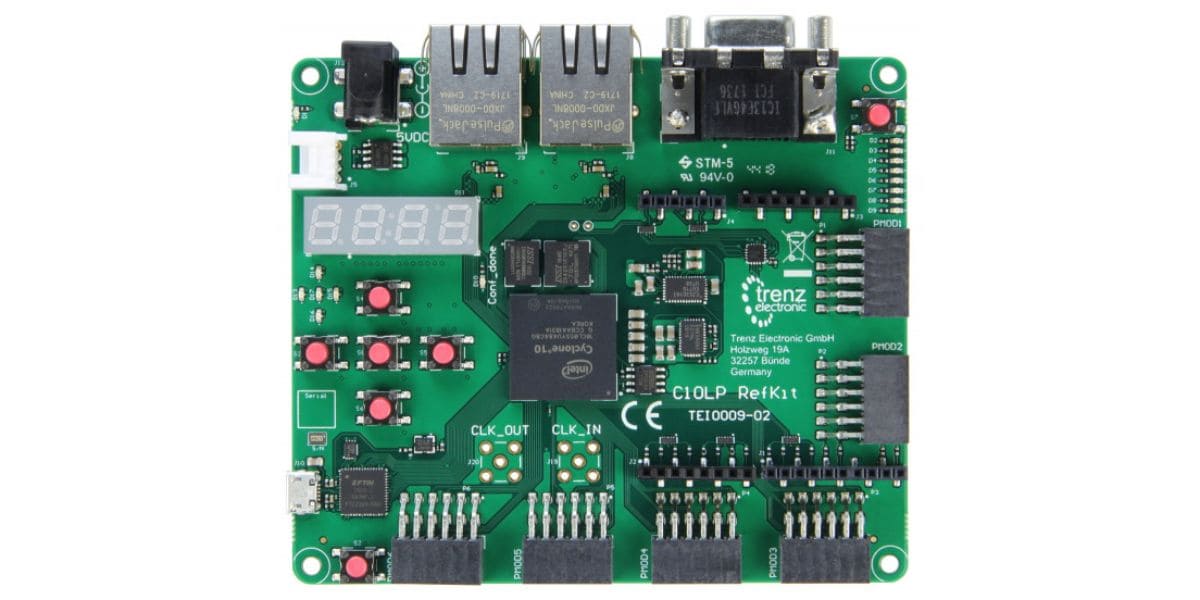

TEI0009 Series-Cyclone 10 LP RefKit 10CL055 Development Board, 32 MByte SDRAM, 16 MByte Flash

The Cyclone 10 LP Reference Kit is the worldwide first development board with a 55kLE Intel Cyclone 10 LP and a huge variety of interfaces for many applications. The board is fully qualified and ready to use for end products and can also be ordered in customized variants exactly according your requirements.

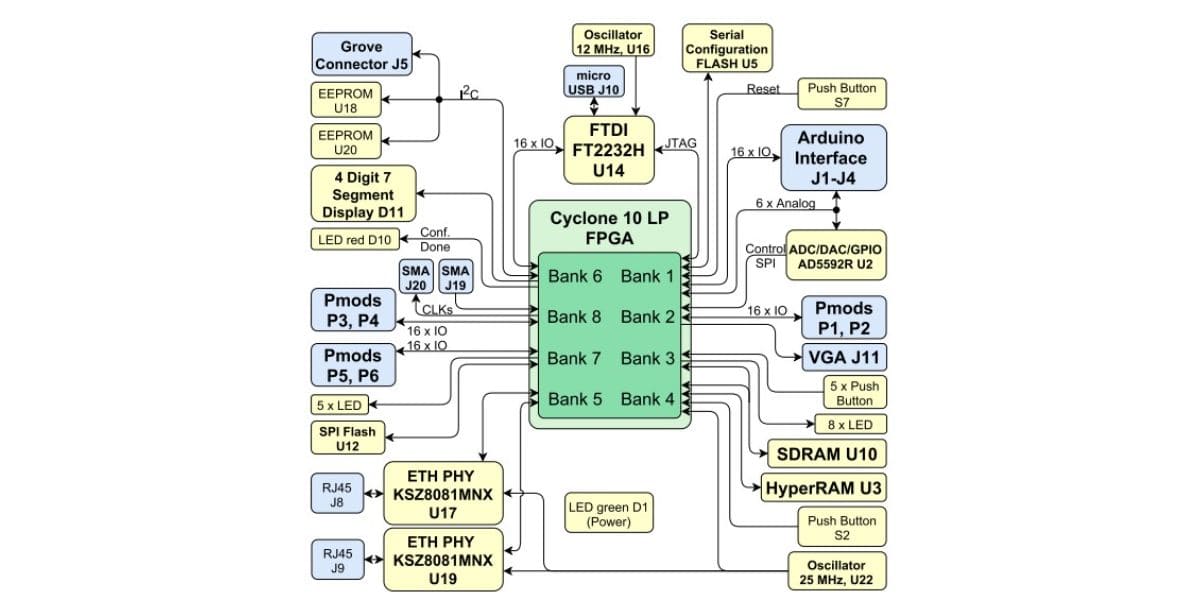

 2022 11 17 104441



Key Features

  • Intel Cyclone 10 LP FPGA 10CL055YU484C8G, 55 kLE in 484-pin
  • 16 MBit Flash memory (optional up to 32 MBit possible)
  • Integrated USB Programmer 2
  • Connectors
    • Arduino compatible pin headers
    • 6 x Pmod compatible pin headers
    • 1 x Grove connector
    • 1 x D-SUB connector for VGA
    • 2 x SMA connectors (not populated)
  • 256 MBit (optional up to 512 MBit possible) SDRAM
  • 128 MBit (optional up to 512 MBit possible) User Quad-SPI Flash memory
  • 64 MBit HyperRAM (optional up to 128 MBit possible)
  • 2 x MAC-Address EEPROM
  • 2 x Fast Ethernet PHY (10/100 MBit/s)
  • 8-Channel, 12-Bit, Configurable ADC/DAC with On-Chip Reference
  • Status LEDs, Power LED
    • 13 x User LEDs
    • 1 x 7-Segment Display
    • 2 x Reset Buttons
    • 5 x User Buttons

Scope of Delivery

  • 1 x TEI0009-02-055-8CA Trenz Electronic Cyclone 10 LP RefKit 10CL055 Development Board
20171115 04

產品編號:TEI0009-02-055-8CA
