TEF0008 Series|FMC Card|Intel MAX 10

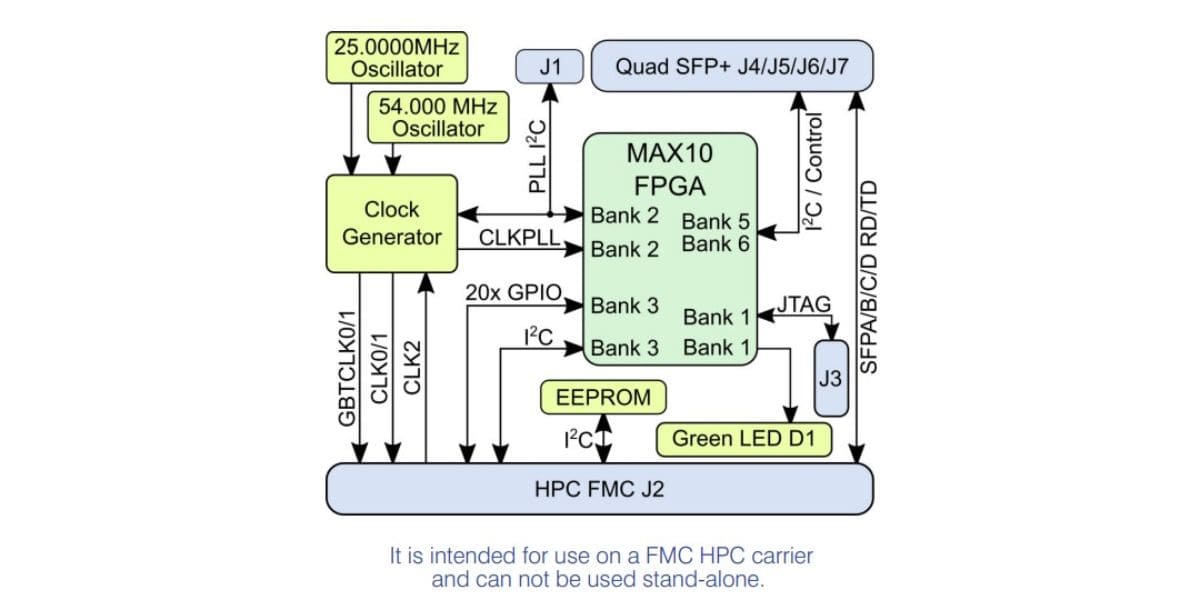

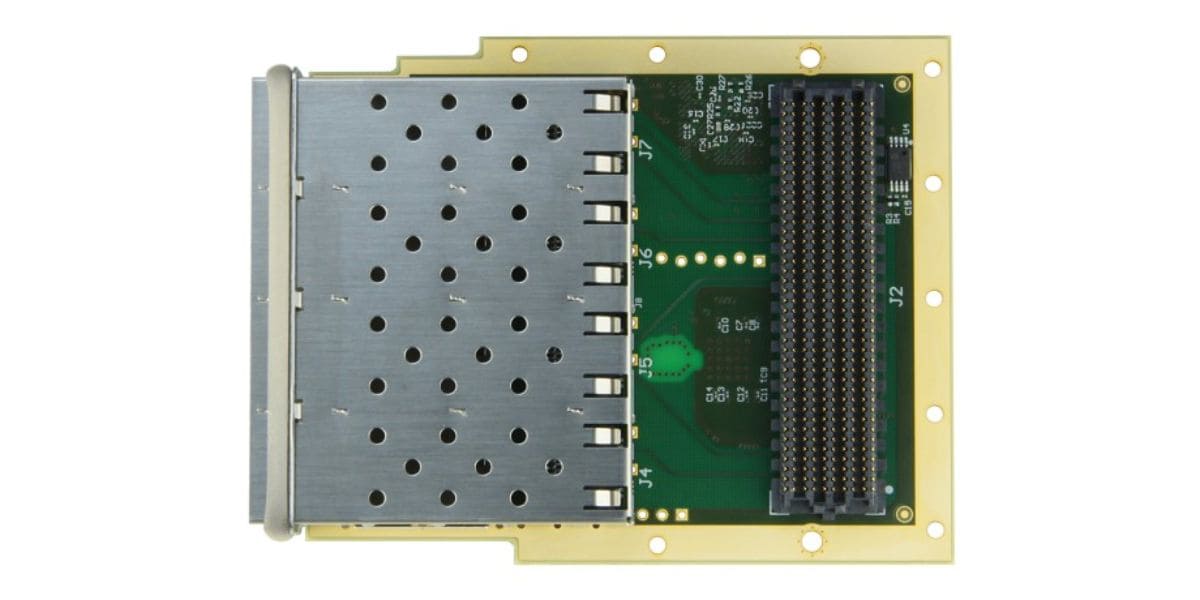

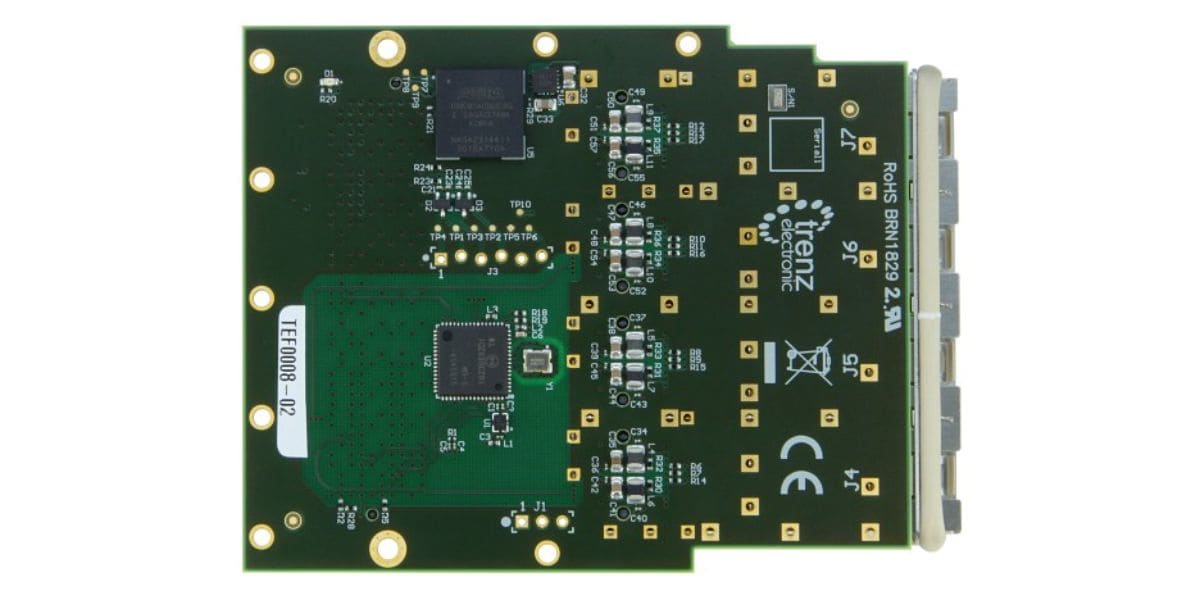

TEF0008 Series-FMC Card with four SFP+ 10 Gbit ports

The Trenz Electronic TEF0008 is a FPGA to Mezzanine Card (FMC) based on VITA 57.1 FMC HPC Standard, with four SFP+ 10 Gbit ports for fiber optical SFP modules. It is inteded for use on a FMC HPC carrier and can not be used stand-alone.

The front panel included in the scope of delivery is used for mounting the TEF0008 on one of our PCIe cards.

Mounting holes near the front pannel are not implemented due to physical restrictions caused by the SFP cage. The dimensions exceed in some area the by Vita 57.1 standard defined dimensions. In the middle region of the card the cage is higher than the specified max high for this area. Check carefully if the carrier card uses this space for other components conflicting mechanical. The bottom side is at the high limit.

 2022 11 17 104359


Key Features

  • Four SFP+ 10 Gbit ports
  • HPC FMC connector
  • Low jitter programmable clock generator
  • Intel MAX10 FPGA 10M08SAU169C8G
  • 3.3 V to 1.8 V DC/DC converter
  • 128 Kbit EEPROM
  • Status LED (green)
  • Dimension: 69 x 84 mm, SFP+ connector excluded (+ 5.5 mm)
  • Highest part on PCB top is 9.5 mm (SFP+ cage, excluded front plate), bottom 1.4 mm (MAX10 FPGA)

Scope of Delivery

  • 1 x TEF0008-02 Trenz Electronic FMC card
  • 1 x FPF0008-01 front panel for mounting TEF0008 on PCIe card
  • 2 x screws
20171115 04
