∵ proFPGA產品線 ③：FPGA模組

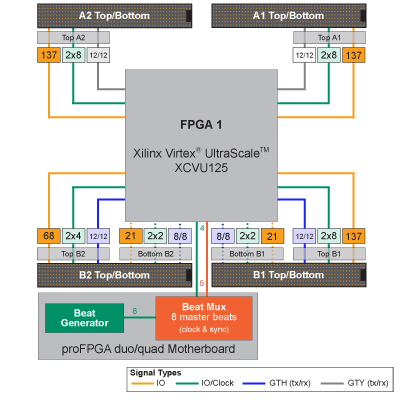

The proFPGA UltraScale™ XCVU125 FPGA Module is the logic core and interface hub for the scalable, and modular multi FPGA Prototyping solution, which fulfills highest needs in the area of high speed interface verification and test. It addresses customers who need a high performance ASIC Prototyping solution for early software development and real time system verification. The innovative system concept and technologies offer highest flexibility and reuseability for several projects, which guarantees the best return on invest.

The proFPGA UltraScale™ XCVU125 FPGA Module, which only works in combination with a proFPGA uno, duo or quad motherboard offers with its latest Virtex® UltraScale™ XCVU125 FPGA technology maximum capacity of up to 8.5 M ASIC gates in a single FPGA. The module offers with its 6 extension sites up to 585 user I/Os for daughter boards (e.g. memory boards, interface boards), interconnecting cables or customer specific application boards.

The highlight of this module is, that it offers beside the standard I/O 64 high speed serial transceivers (24 x GTY, 40 x GTH) running up to 16.375 Gbps (depending on speedgrade of FPGA) for high speed interfaces like PCIe Gen4, Gen3, USB 3.0 or DDR4 memories. The extension sites offer individually and stepless adjustable voltage regions from 1.2V up to 1.8V.

The proFPGA UltraScale™ XCVU190 FPGA Module is the logic core and interface hub for the scalable, and modular multi FPGA Prototyping solution, which fulfills highest needs in the area of high speed interface verification and test. It addresses customers who need a high performance ASIC Prototyping solution for early software development and real time system verification. The innovative system concept and technologies offer highest flexibility and reuseability for several projects, which guarantees the best return on invest.

The proFPGA UltraScale™ XCVU190 FPGA Module, which only works in combination with a proFPGA uno, duo or quad motherboard offers with its latest Virtex® UltraScale™ XCVU190 FPGA technology maximum capacity of up to 12.7 M ASIC gates in a single FPGA. The module offers with its 6 extension sites up to 585 user I/Os for daughter boards (e.g. memory boards, interface boards), interconnecting cables or customer specific application boards.

The highlight of this module is, that it offers beside the standard I/O 64 high speed serial transceivers (24 x GTY, 40 x GTH) running up to 16.375 Gbps (depending on speedgrade of FPGA) for high speed interfaces like PCIe Gen4, Gen3, USB 3.0 or DDR4 memories. The extension sites offer individually and stepless adjustable voltage regions from 1.2V up to 1.8V.

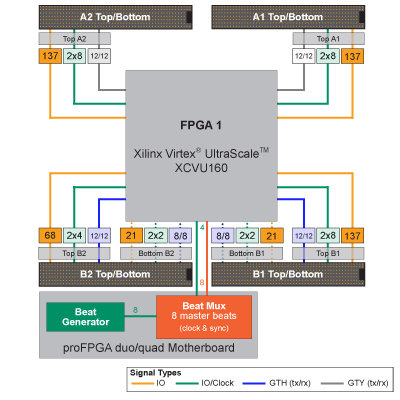

The proFPGA UltraScale™ XCVU160 FPGA Module is the logic core and interface hub for the scalable, and modular multi FPGA Prototyping solution, which fulfills highest needs in the area of high speed interface verification and test. It addresses customers who need a high performance ASIC Prototyping solution for early software development and real time system verification. The innovative system concept and technologies offer highest flexibility and reuseability for several projects, which guarantees the best return on invest.

The proFPGA UltraScale™ XCVU160 FPGA Module, which only works in combination with a proFPGA uno, duo or quad motherboard offers with its latest Virtex® UltraScale™ XCVU160 FPGA technology maximum capacity of up to 11 M ASIC gates in a single FPGA. The module offers with its 6 extension sites up to 585 user I/Os for daughter boards (e.g. memory boards, interface boards), interconnecting cables or customer specific application boards.

The highlight of this module is, that it offers beside the standard I/O 64 high speed serial transceivers (24 x GTY, 40 x GTH) running up to 16.375 Gbps (depending on speedgrade of FPGA) for high speed interfaces like PCIe Gen4, Gen3, USB 3.0 or DDR4 memories. The extension sites offer individually and stepless adjustable voltage regions from 1.2V up to 1.8V.

UltraScale Prototyping Board - The proFPGA UltraScale™ XCVU440 FPGA Module is the logic core for the scalable, and modular multi FPGA Prototyping solution, which fulfills highest needs in the area of FPGA based Prototyping. It addresses customers who need a scalable and most flexible high performance ASIC Prototyping solution for early software development and real time system verification. The innovative system concept and technology offer highest flexibility and reuseability for several projects, which guarantees the best return on invest.

The proFPGA UltraScale™ XCVU440 FPGA Module, which only works in combination with a proFPGA uno, duo or quad motherboard offers with its latest Virtex® UltraScale™ XCVU440 FPGA technology maximum capacity of up to 30 M ASIC gates alone in a single FPGA. The module offers with its 10 extension sites up to 1327 user I/Os for daughter boards (e.g. memory boards, interface boards), interconnecting cables or customer specific application boards.

Besides the standard I/Os the module also provides 48 high speed serial transceivers (MGTs) for high speed interfaces like PCIe Gen2, Gen3, USB 3.0 or DDR4 memories. 9 of the 10 extension sites offer individually and stepless adjustable voltage regions from 1.2V up to 1.8V. One extesnion site even offers adjustable voltage regions from 1.2V up to 3.3V.
