∵ proFPGA產品線 ③：FPGA模組

The proFPGA XC7VX690T FPGA module is the logic core for the scalable, and modular multi FPGA Prototyping solution, which fulfills highest needs in the area of high speed interface verification and test. It addresses customers who need a high performance ASIC Prototyping solution for early software development and real time system verification. The innovative system concept and technologies offer highest flexibility and reuseability for several projects, which guarantees the best return on invest.

The proFPGA XC7VX690T FPGA module, which only works in combination with an proFPGA duo or quad motherboard offers with its latest Virtex 7 FPGA technology medium capacity of up to 4.2 M ASIC gates alone in one FPGA. It is designed to achieve highest performance in combination with its high speed interfaces and connectors. The module offers with its 6 extension sites up to 738 user I/Os for daughter boards (e.g. memory boards, interface boards), interconnecting cables or customer specific application boards.

The highlight of this module is, that it offers beside the standard I/Os 36 high speed serial transceivers (MGTs) for high speed interfaces like PCIe Gen2, Gen3, USB 3.0, or DDR3 memories. All of the 6 extension sites offer individually and stepless adjustable voltage regions from 1.2V up to 1.8V.

Xilinx Protoyping Board - The proFPGA UltraScale™ XCKU115 FPGA Module is the logic core and interface hub for the scalable, and modular multi FPGA Prototyping solution, which fulfills highest needs in the area of high speed interface verification and test. It addresses customers who need a high performance ASIC Prototyping solution for early software development and real time system verification. The innovative system concept and technologies offer highest flexibility and reuseability for several projects, which guarantees the best return on invest.

The proFPGA UltraScale™ XCKU115 FPGA Module, which only works in combination with a proFPGA uno, duo or quad motherboard offers with its latest Kintex® UltraScale™ XCKU115 FPGA technology maximum capacity of up to 7.9 M ASIC gates and 5520 DSP slices in a single FPGA. The module offers with its 6 extension sites up to 585 user I/Os for daughter boards (e.g. memory boards, interface boards), interconnecting cables or customer specific application boards.

The highlight of this module is, that it offers beside the standard I/O 56 high speed serial transceivers (56 x GTH) running up to 16.375 Gbps (depending on speedgrade of FPGA) for high speed interfaces like PCIe Gen4, Gen3, USB 3.0 or DDR4 memories. The extension sites offer individually and stepless adjustable voltage regions from 1.2V up to 1.8V.

The proFPGA XC7V2000T FPGA module is the logic core for the scalable, and modular multi FPGA Prototyping solution, which fulfills highest needs in the area of FPGA based Prototyping. It addresses customers who need a scalable and most flexible high performance ASIC Prototyping solution for early software development and real time system verification. The innovative system concept and technologies offer highest flexibility and reuseability for several projects, which guarantees the best return on invest.

The proFPGA XC7V2000T FPGA module, which only works in combination with an proFPGA duo or quad motherboard offers with its latest Virtex 7 FPGA technology maximum capacity of up to 12 M ASIC gates alone in one FPGA. It is designed to achieve highest performance in combination with its high speed connectors. The module offers with its 8 extension sites up to 1100 user I/Os for daughter boards (e.g. memory boards, interface boards), interconnecting cables or customer specific application boards.

Besides the standard I/Os the module also provides 16 high speed serial transceivers (MGTs) for high speed interfaces like PCIe Gen2, Gen3, USB 3.0 or DDR3 memories. All of the 8 extension sites offer individually and stepless adjustable voltage regions from 1.2V up to 1.8V.

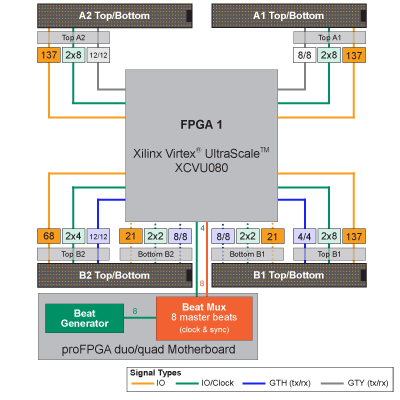

The proFPGA UltraScale™ XCVU080 FPGA Module is the logic core and interface hub for the scalable, and modular multi FPGA Prototyping solution, which fulfills highest needs in the area of high speed interface verification and test. It addresses customers who need a high performance ASIC Prototyping solution for early software development and real time system verification. The innovative system concept and technologies offer highest flexibility and reuseability for several projects, which guarantees the best return on invest.

The proFPGA UltraScale™ XCVU080 FPGA Module, which only works in combination with a proFPGA uno, duo or quad motherboard offers with its latest Virtex® UltraScale™ XCVU080 FPGA technology maximum capacity of up to 5.3 M ASIC gates in a single FPGA. The module offers with its 6 extension sites up to 585 user I/Os for daughter boards (e.g. memory boards, interface boards), interconnecting cables or customer specific application boards.

The highlight of this module is, that it offers beside the standard I/O 52 high speed serial transceivers (20 x GTY, 32 x GTH) running up to 16.375 Gbps (depending on speedgrade of FPGA) for high speed interfaces like PCIe Gen4, Gen3, USB 3.0 or DDR4 memories. The extension sites offer individually and stepless adjustable voltage regions from 1.2V up to 1.8V.
