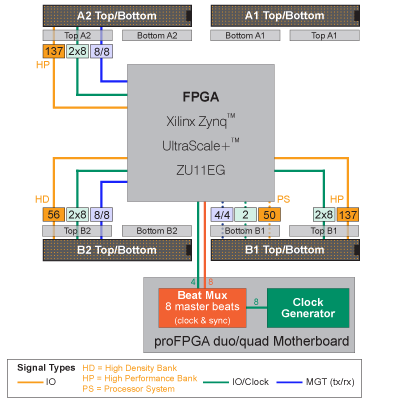

Zynq UltraScale+ 系列 │ ZU11EG

Product Summary

The proFPGA product family is a complete, scalable, and modular multi FPGA Prototyping solution, which fulfills highest needs in the area of FPGA based Prototyping. Part of this modular and flexible system concept is the proFPGA Zynq™ UltraScale+™ ZU11EG FPGA module, which can be easily mounted on the proFPGA uno, duo or quad motherboard and mixed together with various other proFPGA FPGA modules. The ZU11EG FPGA module addresses customers who require a complete and powerful embedded processing platform for high performance SoC Prototyping, IP verification and early software development.

Equipped with a Xilinx Zynq™ UltraScale+™ ZU11EG FPGA which combines a user FPGA with two ARM Multi Core Processors (Embedded Quad-core ARM® Cortex™-A53 and Dual-core ARM® Cortex™-R5) and on board interfaces like USB UART and SDIO, the board offers a complete embedded processing platform. Further interfaces like USB 3.0, Gigabit Ethernet, Display Port, SATA or CAN can be easily added via the Zynq UltraScale+ Interface Board. In addition the board offers already DDR4 memory via SODIMM slot and single QSPI flash memory.

The FPGA module offers a total of 3 extension sites on the top and bottom side with a total of 378 free standard I/Os and 16 high speed serial transceivers for extending the board with standard proFPGA or user specific extension boards or to easily interconnect it to further proFPGA FPGA modules to extend the capacity.

proFPGA Zynq™ UltraScale+™ ZU11EG FPGA Module Specification
FPGA Type Zynq™ UltraScale+™ ZU11EG (speedgrade 1,2 )
Capacity 3.5 M ASIC gates
Embedded Processor Core Quad-core ARM® Cortex™-A53 and Dual-core ARM® Cortex™-R5
Interfaces Processor System On-Board
USB UART interface for debugging
SDIO
External Extension Boards (e.g. via Zynq UltraScale+ Interface Board)
USB 3.0
Gigabit Ethernet
CAN
Display Port
GPIO
I2C
SATA
PMU access
Memories Processor System DDR4 memory via SO DIMM module
Single Quad SPI Flash Memory
Signaling rate Up to 1.2 Gbps (standard I/O)/ 12.5 Gbps (MGT)
Extension sites Up to 4 extension sites with high performance connectors
I/O resources 378 per FPGA module
2 x 153 I/Os (High Denistity Bank) to 2 x top/1 x bottom extension sites
1 x 72 I/Os (High Performance Bank) to top extension site
Single-ended or differential
52 x dedicated I/Os to Processor System
High Speed I/O transceivers 16 per FPGA module
1 x 8 MGTs (up to 12.5 Gb/s) to top extension site A2
1 x 8 MGTs (up to 12.5 Gb/s) to top extension site B2
4 dedicated MGTs to Processor System
Available interface boards PCIe Gen1/Gen2/Gen3, MIPI, DVI, DDR3/DDR4/Flash/LP DDR4 memory, etc.
Voltage regions 3 individually adjustable voltage regions per FPGA Module
Stepless from 1.2V up 3.3V for HD IOs and 1.0. to 1.8 for HP IOs
Clocking over proFPGA duo/quad Motherboard 8 global clock and sync signal inputs per motherboard
X fully synchronous derived clocks with sync signals
System Requirements Works only with proFPGA uno, duo or quad motherboard
Configuration Via Ethernet and USB or PCIe with proFPGA Builder Software
Power External (optional) ATX Power Supply (12 V, 24 - 35 A output)
Dimensions 5.91" x 0.95" x 5.91" / 150 mm x 24 mm x 150 mm (width x height x depth)
0.25 kg weight
Product article number PROF119 FM-XCZU11EG-R1
Order code PROF-FM-XCZU11EG-1/PROF-FM-XCZU11EG-2 (speedgrade 1/2)

  產品文件:產品型錄
  產品編號:PROF-FM-XCZU11EG-1/PROF-FM-XCZU11EG-2 (speedgrade 1/2)

Previous Next

Intel Stratix 10 系列 │ SG280 FPGA模組

Product Summary on Intel Prototyping Board

Intel Prototyping Board - The proFPGA SG 280 FPGA module is the logic core for the scalable and modular multi-FPGA proFPGA solution, which fulfills highest needs in the area of FPGA based Prototyping. It addresses customers who need a scalable and most flexible high performance ASIC Prototyping solution for early software development and real-time system verification. The innovative system concept and technologies offer highest flexibility and reusability for several projects, which guarantees the best return on invest.

The proFPGA SG 280 FPGA module only works in combination with a proFPGA uno, duo or quad motherboard and offers with its latest Intel® Stratix® 10 FPGA technology a maximum capacity of up to 20 M ASIC gates alone in one FPGA. It is designed to achieve highest performance in combination with its high speed connectors.

The module offers with its 8 extension sites up to 1026 user I/Os for daughter boards (e.g. memory or interface boards), interconnect cables or customer specific application boards.

In addition to the regular I/Os the module provides 24 high speed serial transceivers (1 x 12 and 2 x 6 Transceiver Tiles) running up to 17.4 Gbps for high speed interfaces like PCIe Gen4. All 8 extension sites offer individually and stepless adjustable voltage regions from 1.2V up to 1.8V.

proFPGA Stratix® 10 SG280 FPGA Module Specification
FPGA Type Intel® Stratix® 10 GX2800 F2912 (speedgrade 1/2/3)
Capacity Up to 20 M ASIC gates
FPGA-internal memory Up to 229 Mbit on one board (SG280 FPGA)
Signaling rate Up to 1.0 Gbps single ended (standard I/O)/ up to 17.4 Gbps differential
Extension sites Up to 8 Extension sites with high speed connectors
I/O resources Overall up to 1026 signals for I/O
4x141 I/Os to top side connectors
3x141 and 1x39 I/Os to bottom side connectors
Single-ended or differential
High Speed I/O transceivers Up to 24 (SG280 FPGA) dedicated high speed serial transceivers running up to 17.4 Gbps
FPGAs interconnections Flexible via high-speed interconnection boards or cables
Voltage regions 8 individually adjustable voltage regions per FPGA Module
Stepless from 1.2 up 1.8V
Automated detection of daughter card and adjustment of right voltage
Configuration With proFPGA uno, duo or quad Motherboard via Ethernet, USB, PCIe
Product article number PROF113 FM-1SG280-R1
Order code PROF-FM-ASG280-1/-2/-3 (speedgrade 1/2/3)
  產品文件:產品型錄
  產品編號:ROF-FM-ASG280-1/-2/-3 (speedgrade 1/2/3)

Previous Next

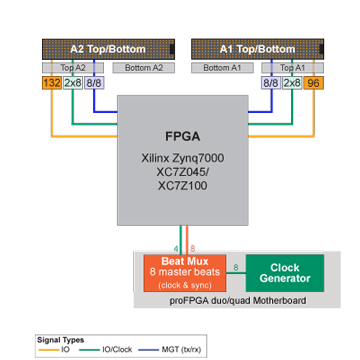

Zynq 7000系列 │ XC7Z100 FPGA模組

Product Summary

The proFPGA product family is a complete, scalable, and modular multi FPGA Prototyping solution, which fulfills highest needs in the area of FPGA based Prototyping. Part of this modular and flexible system concept is the proFPGA Zynq™ 7000 FPGA module, which can be easily mounted on the proFPGA uno, duo or quad motherboard and mixed together with various other proFPGA FPGA modules like the proFPGA Virtex 7 2000T FPGA module. The proFPGA Zynq™ 7000 FPGA module addresses customers who require a complete embedded processing platform for high performance SoC Prototyping solution, IP verification and early software development.

Equipped with a Xilinx Zynq™ XC7Z100 FPGA which combines a user FPGA with an ARM Core Processor (Dual ARM® Cortex™-A9 MPCore™ with CoreSight™) and several on board interfaces like USB 2.0 OTG, Gigabit Ethernet or ARM JTAG debug interface the Board offers a complete embedded processing platform. Further the board already offers 1 GB on board DDR3 and dual quad SPI flash memory.

The FPGA module offers a total of 2 extension sites on the top with 260 standard I/Os and 16 high speed serial transceivers for extending the board with standard proFPGA or user specific extension boards.





proFPGA Xilinx Zynq 7000 XC7Z100 FPGA Module Specification
FPGA Type Xilinx Zynq XC7Z100 (speedgrade 1,2 )
Capacity 2.7 M ASIC gates
Embedded Processor Core Dual ARM® Cortex™-A9 MPCore™ with CoreSight™
On Board Interfaces Processor Unit USB UART interface for debugging
USB 2.0 OTG
Gigabit Ethernet
ARM JTAG Connector for debugging
PL (Programmable Logic)
PS (Processing System)
System reset buttons
On Board Memories Processor Unit 1 GB DDR3 memory
Dual Quad SPI Flash Memory
Signaling rate Up to 1.2 Gbps (standard I/O)/ 12.5 Gbps (MGT)
Extension sites 2 extension sites with high performance connectors
I/O resources 260 per FPGA module
1 x 148 I/Os to top side connector A1
1 x 98 I/Os to top side connector A2
Single-ended or differential
High Speed I/O transceivers 16 per FPGA module
1 x 8 MGTs (up to 12.5 Gb/s) to top side connector A1
1 x 8 MGTs (up to 12.5 Gb/s) to top side connector A2
Available interface boards USB 3.0, PCIe Gen2/Gen3, MIPI, DVI, DDR3 memory, Gb Ethernet, etc.
Voltage regions 2 individually adjustable voltage regions per FPGA Module
Stepless from 1.2V up 3.3V for HR IOs and 1.2. to 1.8 for HP IOs
On Board Clocking 1 x 33.333 MHz clock is generated for the ARM Core as system clock
1 x 50 MHz are provided to the FPGA PL
Clocking over proFPGA duo/quad Motherboard 8 global clock and sync signal inputs per motherboard
X fully synchronous derived clocks with sync signals
System Requirements Works only with proFPGA uno, duo or quad motherboard
Configuration JTAG interface
On Board SD memory card
Power External (optional) ATX Power Supply (12 V, 24 - 35 A output)
Dimensions 5.91" x 0.95" x 5.91" / 150 mm x 24 mm x 150 mm (width x height x depth)
0.25 kg weight
Product article number PROF061 FM-XC7Z100-R4
Order code PROF-FM-XC7Z100

  產品文件:產品型錄
  產品編號:PROF-FM-XC7Z100

Previous Next

Zynq 7000系列 │ XC7Z045 FPGA模組

Product Summary

The proFPGA product family is a complete, scalable, and modular multi FPGA Prototyping solution, which fulfills highest needs in the area of FPGA based Prototyping. Part of this modular and flexible system concept is the proFPGA Zynq™ 7000 FPGA module, which can be easily mounted on the proFPGA uno, duo or quad motherboard and mixed together with various other proFPGA FPGA modules like the proFPGA Virtex 7 2000T FPGA module. The proFPGA Zynq™ 7000 FPGA module addresses customers who require a complete embedded processing platform for high performance SoC Prototyping solution, IP verification and early software development.

Equipped with a Xilinx Zynq™ XC7Z045 FPGA which combines a user FPGA with an ARM Core Processor (Dual ARM® Cortex™-A9 MPCore™ with CoreSight™) and several on board interfaces like USB 2.0 OTG, Gigabit Ethernet or ARM JTAG debug interface the Board offers a complete embedded processing platform. Further the board already 1 GB on board DDR3 and dual quad SPI flash memory.

The FPGA module offers a total of 2 extension sites on the top with 260 standard I/Os and 16 high speed serial transceivers for extending the board with standard proFPGA or user specific extension boards.

proFPGA Xilinx Zynq 7000 XC7Z045 FPGA Module Specification
FPGA Type Xilinx Zynq XC7Z045 (speedgrade 1,2 )
Capacity 2.15 M ASIC gates
Embedded Processor Core Dual ARM® Cortex™-A9 MPCore™ with CoreSight™
On Board Interfaces Processor Unit USB UART interface for debugging
USB 2.0 OTG
Gigabit Ethernet
ARM JTAG Connector for debugging
PL (Programmable Logic)
PS (Processing System)
System reset buttons
On Board Memories Processor Unit 1 GB DDR3 memory
Dual Quad SPI Flash Memory
Signaling rate Up to 1.2 Gbps (standard I/O)/ 12.5 Gbps (MGT)
Extension sites 2 extension sites with high performance connectors
I/O resources 260 per FPGA module
1 x 148 I/Os to top side connector A1
1 x 98 I/Os to top side connector A2
Single-ended or differential
High Speed I/O transceivers 16 per FPGA module
1 x 8 MGTs (up to 12.5 Gb/s) to top side connector A1
1 x 8 MGTs (up to 12.5 Gb/s) to top side connector A2
Available interface boards USB 3.0, PCIe Gen2/Gen3, MIPI, DVI, DDR3 memory, Gb Ethernet, etc.
Voltage regions 2 individually adjustable voltage regions per FPGA Module
Stepless from 1.2V up 3.3V for HR IOs and 1.2. to 1.8 for HP IO
On Board Clocking 1 x 33.333 MHz clock is generated for the ARM Core as system clock
1 x 50 MHz are provided to the FPGA PL
Clocking over proFPGA duo/quad Motherboard 8 global clock and sync signal inputs per motherboard
X fully synchronous derived clocks with sync signals
System Requirements Works only with proFPGA uno, duo or quad motherboard
Configuration JTAG interface
On Board SD memory card
Power External (optional) ATX Power Supply (12 V, 24 - 35 A output)
Dimensions 5.91" x 0.95" x 5.91" / 150 mm x 24 mm x 150 mm (width x height x depth)
0.25 kg weight
Product article number PROF061 FM-XC7Z045-R4
Order code PROF-FM-XC7Z045
  產品文件:產品型錄
  產品編號:PROF-FM-XC7Z045



Previous Next

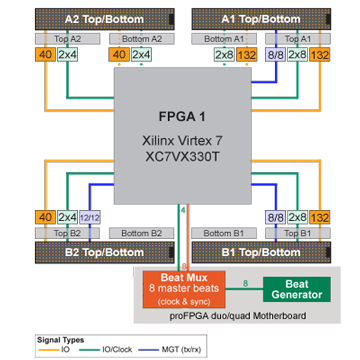

Virtex 7 系列 │ XC7VX330T FPGA模組

Product Summary

The proFPGA XC7VX330T FPGA module is the logic core and interface hub for the scalable, and modular multi FPGA Prototyping solution, which fulfills highest needs in the area of high speed interface verification and test. It addresses customers who need a high performance ASIC Prototyping solution for early software development and real time system verification. The innovative system concept and technologies offer highest flexibility and reuseability for several projects, which guarantees the best return on invest.

The proFPGA XC7VX330T FPGA module, which only works in combination with an proFPGA duo or quad motherboard offers with its latest Virtex 7 FPGA technology medium capacity of up to 2 M ASIC gates in one FPGA. It is designed to achieve highest performance in combination with its high speed interfaces and connectors. The module offers with its 6 extension sites up to 540 user I/Os for daughter boards (e.g. memory boards, interface boards), interconnecting cables or customer specific application boards.

The highlight of this module is, that it offers beside the standard I/Os 28 high speed serial transceivers (MGTs) for high speed interfaces like PCIe Gen2, Gen3, USB 3.0, or DDR3 memories. All of the 6 extension sites offer individually and stepless adjustable voltage regions from 1.2V up to 1.8V. One extension site also offers up to 3.3V.





proFPGA XC7VX330T FPGA Module Specification
FPGA Type XC7VX330T (speedgrade 1,2 ), FFG1761 package
Capacity Up to 2 M ASIC gate
FPGA-internal memory 27,000 kbits
Signaling rate Up to 1 Gbps (standard I/O)/ up to 13.1 Gbps (MGT) depending on FPGA type and speedgrade
Extension sites 6 Extension sites with High Performance (up to 21 Gbps) connectors
I/O resources Overall 540 signals for I/O and inter FPGA connection
2x148 I/Os and 2x48 to top side connectors
1x148 and 1x48 I/Os to bottom side connectors
Single-ended or differential
High Speed I/O transceivers 28 dedicated MGTs running up to 13.1 Gbps depending on FPGA type and speedgrade
FPGAs interconnections Flexible via high-speed interconnection boards or cables
Voltage regions 6 individually adjustable voltage regions per FPGA Module
Stepless from 1.2 up 1.8V on each sites and up to 3.3V on one site
Automated detection of daughter card and adjustment of right voltage
Configuration With proFPGA uno, duo or quad Motherboard via Ethernet, USB, PCIe
Product article number PROF010 FM-Virtex7-330T-R1
Order code PROF-FM-XC7VX330T
  產品文件:產品型錄
  產品編號:PROF-FM-XC7VX330T
